EC Insulator Jiangxi Co., Ltd. Nrog kev paub dhau los, peb tau cog lus los muab cov kev pabcuam zoo tshaj plaws. Thov koj xav tias dawb rau cov lag luam wholesale hwm silicone roj hmab surge ntes ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas.
Product Description

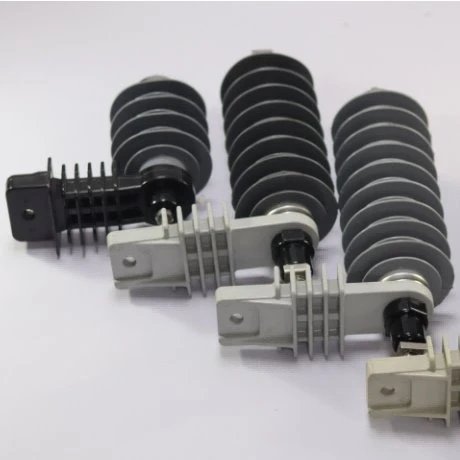

Zinc oxide varistor blocks ua lub luag haujlwm tiv thaiv kev tiv thaiv ntawm silicone roj hmab surge arrester, featuring txawv tsis yog - cov yam ntxwv voltage. Thaum xob laim surges los yog hloov overvoltage intrude lub hwj chim circuits, cov blocks sai sai ntws tshaj surge tam sim no, tiv thaiv kev puas tsuaj ntawm tag nrho cov khoom txuas nrog downstream.

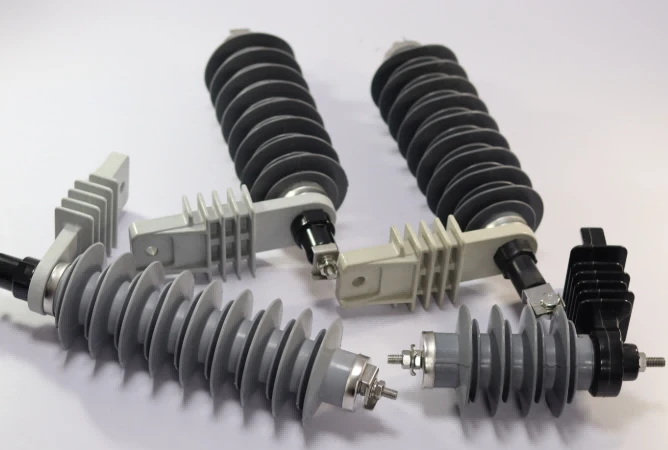

Txhawm rau kom ruaj ntseg rwb thaiv tsev sab nraum zoov, qhov no silicone roj hmab surge arrester txais ntau-puab silicone roj hmab sab nraud. Qhov kev teeb tsa tshwj xeeb no ua tau zoo ua kom ntev qhov tob tob, tswj kev ua haujlwm ruaj khov ntawm cov rwb thaiv tsev nyob nruab nrab ntawm cov av noo, plua plav, hnyav hnyav thiab ntev -lub hnub ci sab nraum zoov ib puag ncig. Tsis zoo li cov plooj (porcelain shells), cov khoom siv roj hmab silicone txo qis qhov hnyav tag nrho, ua kom yooj yim rau kev thauj mus los thiab ntawm - qhov chaw ua haujlwm rau pab pawg tsim kho.
Cov kev xaiv kev cai ntawm ntau qhov ntsuas qhov ntsuas hluav taws xob thiab cov qib tawm tam sim no muaj kom haum rau ntau yam kev siv hluav taws xob thoob ntiaj teb. Tau tshaj ob qho tib si 50Hz thiab 60Hz daim phiaj qauv, tus ntes tau dav siv rau cov khoom siv hluav taws xob, cov khoom siv hluav taws xob tiv thaiv, cov chaw siv hluav taws xob thiab cov chaw tsim hluav taws xob tshiab. Kev soj ntsuam nruj raw khoom yog siv ua ntej kev tsim khoom loj. Peb pab pawg QC tau tshuaj xyuas txhua yam khoom siv kom ua tau raws li cov qauv kev lag luam, thiab txhua chav ua tiav tau kuaj xyuas hluav taws xob tag nrho tom qab sib dhos thiab sib khi ua ntej xa khoom.
Hauv -High Voltage Laboratory Test
Peb lub Hoobkas ua haujlwm rau tus kheej- muaj cov kws tshaj lij kev ntsuas hluav taws xob ntsuas hluav taws xob, nruab nrog cov cuab yeej ntsuas hluav taws xob thiab lub zog- zaus tiv thaiv cov cuab yeej ntsuas hluav taws xob raws li pom hauv daim duab. Txhua qhov kev sim ua haujlwm ntawm peb cov neeg ntes tuaj yeem ua tiav sab hauv.

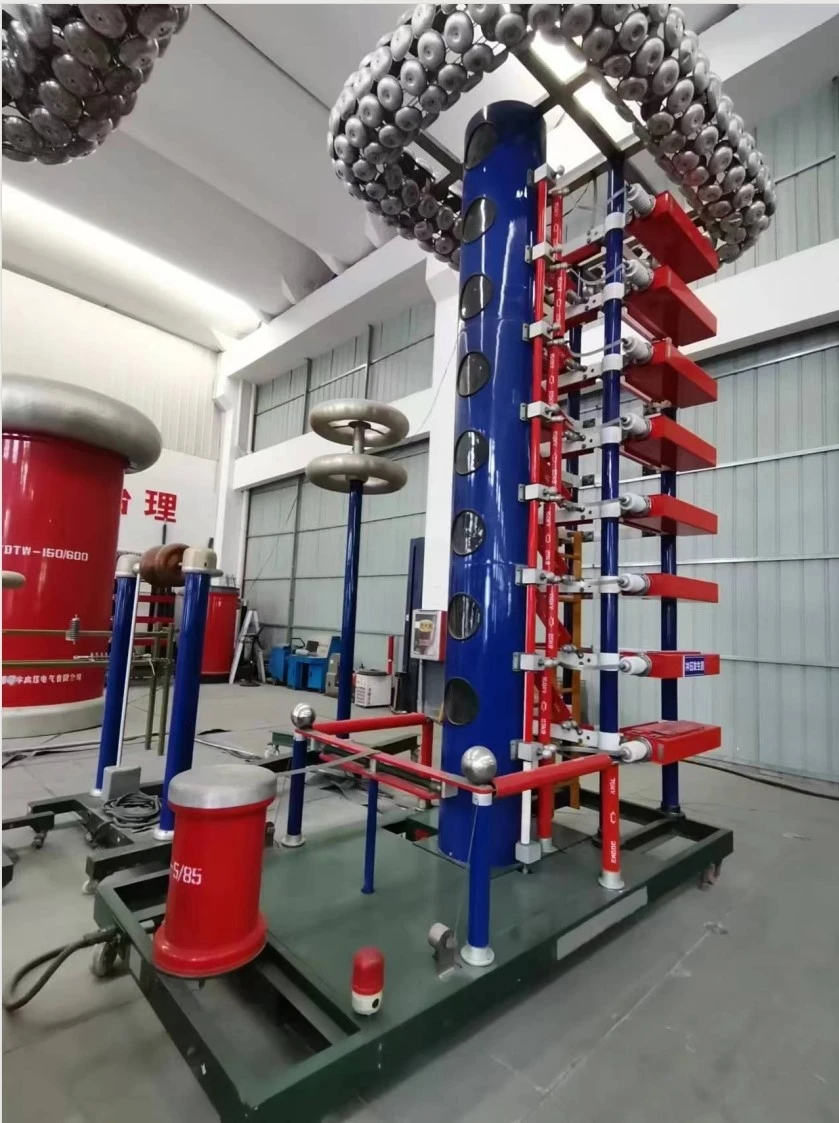

Lightning Impulse Test Cov cuab yeej no simulates instantaneous high voltage coj los ntawm ntuj xob laim. Txhua tus neeg raug ntes yuav dhau qhov kev sim no kom paub meej tias nws lub peev xwm tiv thaiv xob laim. Kev puas tsuaj ntawm rwb thaiv tsev thiab qhov chaw flashover txaus ntshai nyob rau hauv kev cuam tshuam ntawm xob laim yuav raug kuaj xyuas tag nrho, uas yog ib qho tseem ceeb rau kev ntsuam xyuas kom ntseeg tau tias kev tiv thaiv hluav taws xob.
Fais fab-frequency Withstand Voltage Test Nruam fais fab zaus zaus siab voltage yuav siv rau cov khoom tiav thaum lub sij hawm xeem. Ua ke nrog kev tshuaj ntsuam xyuas ib nrab, nws tuaj yeem pom qhov ua tsis raug xws li silicone roj hmab plhaub tawg, sealing tsis zoo thiab kev sib dhos sab hauv. Qhov kev sim no yog ua los ntawm txhua tus neeg raug ntes raws li kev kuaj xyuas tus qauv. Peb tuaj yeem muab cov ntaub ntawv xeem tiav thiab cov ntawv tshaj tawm kev xeem rau cov neeg siv khoom sib tw thiab ntawm - qhov chaw lees paub.
Khoom Description

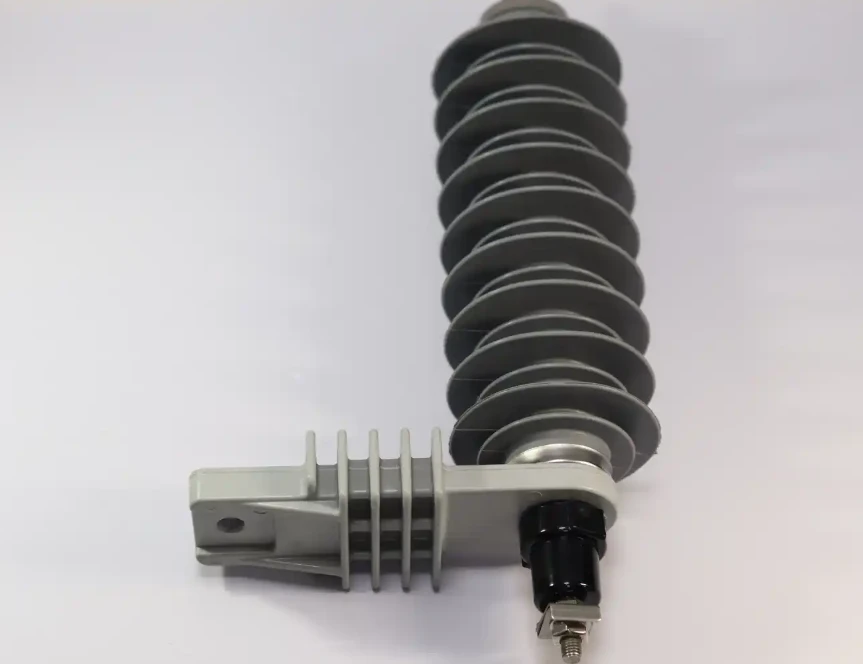

Raws li ZnO varistor thev naus laus zis, tus neeg ntes tau tsim los teb sai sai thaum xob laim impulse lossis hloov overvoltage tshwm sim hauv nruab nrab voltage systems. Lub tsev silicone roj hmab yog xaiv rau kev siv rwb thaiv tsev sab nraum zoov, muab cov khoom siv hydrophobic thiab tiv thaiv kom ya raws, muaj kuab paug thiab UV raug thaum lub sijhawm ua haujlwm ntev -.
Nrog rau qhov tso tawm - hom rwb thaiv tsev qauv, qhov kev ncua deb tau nce ntxiv los txhim kho kev ua haujlwm rwb thaiv tsev nyob rau hauv ib puag ncig sib txawv. Piv nrog rau cov qauv porcelain ib txwm siv, cov vaj tsev polymer txo qhov hnyav tag nrho ntawm tus neeg ntes, uas pab kom yooj yim rau kev thauj mus los thiab kev teeb tsa ua haujlwm.
Kev ntsuas hluav taws xob sib txawv thiab kev tso tawm tam sim no tuaj yeem muab tau raws li cov kev xav tau nruab nrab nruab nrab. Ua ntej xa khoom, txhua chav ua tiav raug tshuaj xyuas los ntawm kev ntsuas hluav taws xob los txheeb xyuas qhov tseem ceeb thiab xyuas kom meej tias cov khoom ua tau raws li qhov yuav tsum tau ua.
Technical Parameters
|
Qauv |
Rated Voltage (kV rms) |
Nruam siab tshaj plaws Kev khiav hauj lwm voltage (kV rms) |
Nominal Discharge Current |
Khoom siv tsev |
|
YH5W-3 |
3 |
2.55 |
5kA / 10kA |
Silicone Roj Hmab |
|
YH5W-6 |
6 |
5.1 |
5kA / 10kA |
Silicone Roj Hmab |
|
YH5W-9 |
9 |
7.65 |
5kA / 10kA |
Silicone Roj Hmab |
|
YH5W-10 |
10 |
8.4 |
5kA / 10kA |
Silicone Roj Hmab |
|
YH5W-12 |
12 |
10.2 |
5kA / 10kA |
Silicone Roj Hmab |
|
YH5W-15 |
15 |
12.7 |
5kA / 10kA |
Silicone Roj Hmab |
|
YH5W-18 |
18 |
15.3 |
5kA / 10kA |
Silicone Roj Hmab |
|
YH5W-21 |
21 |
17 |
5kA / 10kA |
Silicone Roj Hmab |
|
YH5W-24 |
24 |
19.5 |
5kA / 10kA |
Silicone Roj Hmab |
|
YH5W-27 |
27 |
22 |
5kA / 10kA |
Silicone Roj Hmab |
|
YH5W-30 |
30 |
24.4 |
5kA / 10kA |
Silicone Roj Hmab |
|
YH5W-33 |
33 |
27.5 |
5kA / 10kA |
Silicone Roj Hmab |
|
YH5W-36 |
36 |
29 |
5kA / 10kA |
Silicone Roj Hmab |
Cov cheeb tsam thov
Qhov no silicone roj hmab surge arrester yog dav ntsia rau nruab nrab voltage faib tes hauj lwm, sab nraum zoov nyiaj siv ua haujlwm kab, transformer tiv thaiv systems thiab fais fab substations. Nws kuj ua haujlwm zoo rau cov chaw tsim hluav taws xob thiab cov chaw tsim hluav taws xob txuas ntxiv. Rau xob quaj-nrhiav, av ntub lossis muaj kuab paug hnyav, nws tuaj yeem txhim kho kev ua haujlwm rwb thaiv tsev zoo thiab ua kom muaj kev ntseeg siab ntawm cov khoom siv tag nrho.
Kev Tswj Xyuas Zoo
Peb qhov kev tswj xyuas zoo suav nrog cov khoom siv raw khoom tuaj xyuas, kev tsim cov txheej txheem taug qab thiab ua tiav kev ntsuas hluav taws xob. Ua ntej sib dhos, cov neeg soj ntsuam yuav xyuas tag nrho ZnO varistor blocks, silicone roj hmab vaj tse thiab hlau fittings tiv thaiv cov qauv kev cai. Cov kauj ruam tsim khoom tseem ceeb xws li kev sib koom ua ke, kev sib khi thiab kev kho hluav taws xob yuav raug saib xyuas thoob plaws hauv kev tsim khoom. Ua ntej xa khoom xa tuaj, txhua tus neeg ntes yuav ua tiav qhov kev ntsuas tam sim no, kev ntsuas hluav taws xob siv hluav taws xob, qhov ntsuas hluav taws xob seem, qhov ntsuas qhov tso tawm ib nrab thiab lub zog- zaus ntsuas hluav taws xob. Cov ntawv pov thawj tag nrho thiab cov ntawv pov thawj xeem tuaj yeem muab tau raws li cov neeg siv khoom thov.
