EC Insulator Jiangxi Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm 750 kva qhuav hom transformer nyob rau hauv Suav teb. Nrog kev paub dhau los, peb tau cog lus los muab cov kev pabcuam zoo tshaj plaws. Thov koj xav tias dawb rau cov lag luam wholesale hwm 750 kva qhuav hom transformer ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas.
Khoom Taw Qhia

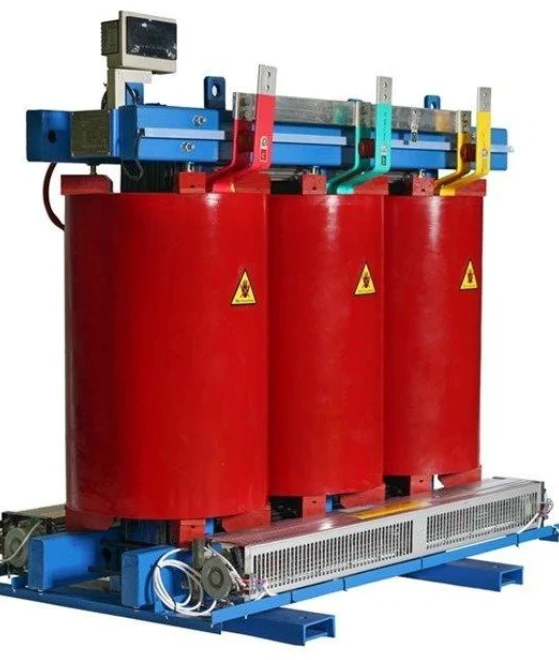

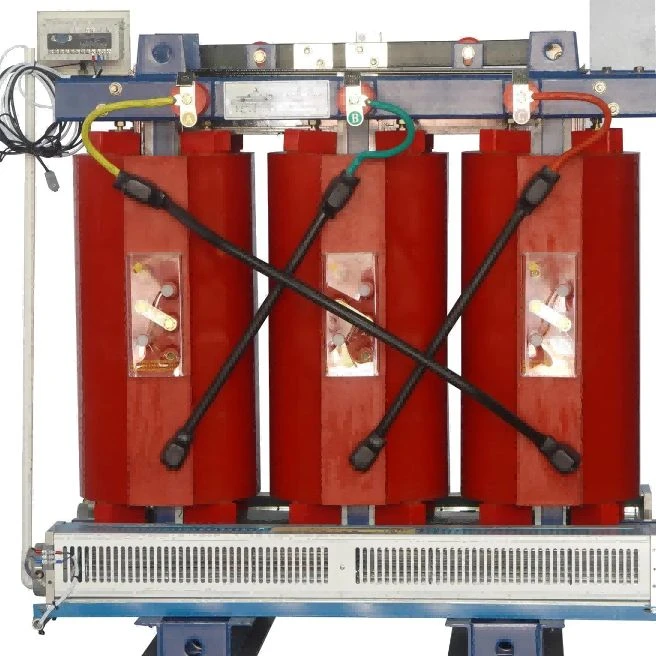

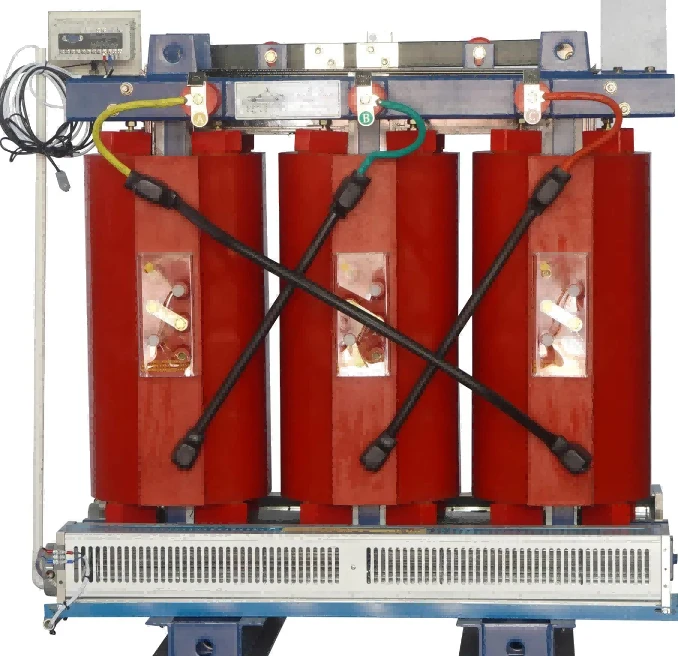

Lub 750kVA qhuav hom transformer feem ntau xaiv rau sab hauv tsev faib khoom qhov nruab nrab - muaj peev xwm yuav tsum tau muaj rau cov chaw lag luam thiab kev lag luam. Cov ntawv thov raug suav nrog cov chaw tsim khoom, chaw ua haujlwm, tsev kho mob, cov chaw khaws ntaub ntawv thiab lwm yam haujlwm nrog rau chav hluav taws xob tshwj xeeb.
Hauv ntau qhov kev teeb tsa, lub peev xwm hloov pauv tau txiav txim siab los ntawm ntau tshaj qhov xav tau tam sim no lub zog. Cov yam ntxwv ntawm cov cuab yeej siv, lub sijhawm ua haujlwm, kev nthuav dav ntxiv rau yav tom ntej thiab qhov chaw muaj kev teeb tsa kuj raug tshuaj xyuas thaum lub sijhawm xaiv.
Siv epoxy resin cam khwb cia rwb thaiv tsev es tsis txhob ua kua rwb thaiv tsev, qhov no transformer zam cov roj leakage kev txhawj xeeb ib txwm txuam nrog cov roj immersed units. Cov txheej txheem rwb thaiv tsev zoo kuj tseem txo cov kev ua haujlwm niaj hnub uas cuam tshuam nrog kev tshuaj xyuas roj thiab hloov.
Rau ib tug 750kVA qhuav hom transformer, hluav taws xob tsis xws li voltage piv, zaus, impedance voltage thiab kev twb kev txuas pab pawg yuav tsum tau paub tseeb hais tias ua ntej ntau lawm. Cov ntsiab lus no ncaj qha cuam tshuam rau kev tsim winding, kev ua haujlwm kub thiab kev sib raug zoo nrog cov neeg siv khoom faib khoom network.
Engineering Design thiab Main Features
Transformer kev ua tau zoo nyob ntawm kev sib koom ua ke ntawm cov sib nqus Circuit Court, winding arrangement thiab rwb thaiv tsev system.
Grain-cov ntawv qhia txog silicon steel yog siv rau cov tub ntxhais sib dhos. Thaum lub sij hawm tsim khoom, cov txheej txheem txiav thiab stacking mob yog ua tib zoo tswj vim hais tias cov tub ntxhais zoo muaj kev cuam tshuam ncaj qha rau tsis muaj -load poob, kev khiav hauj lwm efficiency thiab acoustic kev ua tau zoo.
Tshooj winding txais cov pa oxygen -dawb tooj liab conductors. Piv nrog rau cov khoom siv hluav taws xob zoo tib yam, tooj liab nrog cov khoom siv hluav taws xob ruaj khov pab tswj kev sib kis tam sim no nyob rau hauv cov xwm txheej tsis tu ncua. Cov qauv winding kuj yog tsim los nrog kev xav txog kev siv lub zog thaum lub sijhawm luv luv - Circuit Court tej yam kev mob.
Lub tshuab nqus tsev epoxy resin casting txheej txheem yog siv tom qab coil ntau lawm. Es tsis txhob tsuas yog npog lub winding nto, cov resin nkag mus rau hauv lub rwb thaiv tsev qhov khoob thiab tsim ib tug compact qauv tom qab kho. Kev tswj ntawm lub tshuab nqus tsev siab, resin condition thiab curing kub yog ib qho tseem ceeb nyob rau theem no.
Rau cov ntawv thov uas xav tau kev saib xyuas kev ua haujlwm, PT100 qhov ntsuas kub ntsuas tuaj yeem ntsia tau rau hauv cov theem winding. Cov ntaub ntawv kub tau khaws cia thaum lub sijhawm ua haujlwm tuaj yeem pab cov neeg ua haujlwm saib xyuas txheeb xyuas qhov ntsuas kub hloov pauv thaum ntxov.
Daim ntawv thov thiab kev teeb tsa
Factories nrog cov cuab yeej tsim khoom yog ib qho ntawm cov chaw siv rau cov peev txheej no. Nyob rau hauv xws li tej yaam num, engineers feem ntau xyuam xim rau lub cev muaj zog pib tam sim no, load fluctuation thiab lub zog ntawm cov khoom siv hluav taws xob.
Cov tsev lag luam thiab cov chaw pej xeem feem ntau muaj qhov tseem ceeb sib txawv. Qhov chaw hluav taws xob tsawg tsawg, kev tso cua tawm, kev xav tau suab nrov thiab kev tiv thaiv hluav taws tuaj yeem cuam tshuam rau qhov kev npaj ua tiav kawg.
Cov tsev kho mob thiab cov chaw zov me nyuam yuav tsum muaj hluav taws xob ruaj khov vim tias muaj ntau lub tshuab txuas nrog tsis tuaj yeem ua rau muaj kev cuam tshuam tsis txaus ntseeg. Kev xaiv Transformer yog li ntawd suav nrog ua ke nrog kev tsim hluav taws xob tag nrho.
Ib puag ncig tej yam kev mob yuav tsum tsis txhob overlooked thaum lub sij hawm lub project npaj. Qhov kub thiab txias, av noo, qhov siab thiab cov pa phem tuaj yeem cuam tshuam rau kev sib koom ua ke ntawm rwb thaiv tsev thiab kev ua haujlwm txias, tshwj xeeb tshaj yog nyob rau thaj tsam ntug dej hiav txwv lossis thaj chaw muaj kev lag luam.
Cov txheej txheem tsim khoom thiab kev soj ntsuam zoo
Kev tsim khoom pib nrog kev tshuaj xyuas cov khoom tuaj. Silicon steel sheets, tooj liab conductors, epoxy resin compounds thiab rwb thaiv tsev cov ntaub ntawv raug kuaj ua ntej nkag mus rau hauv lub rhiav.

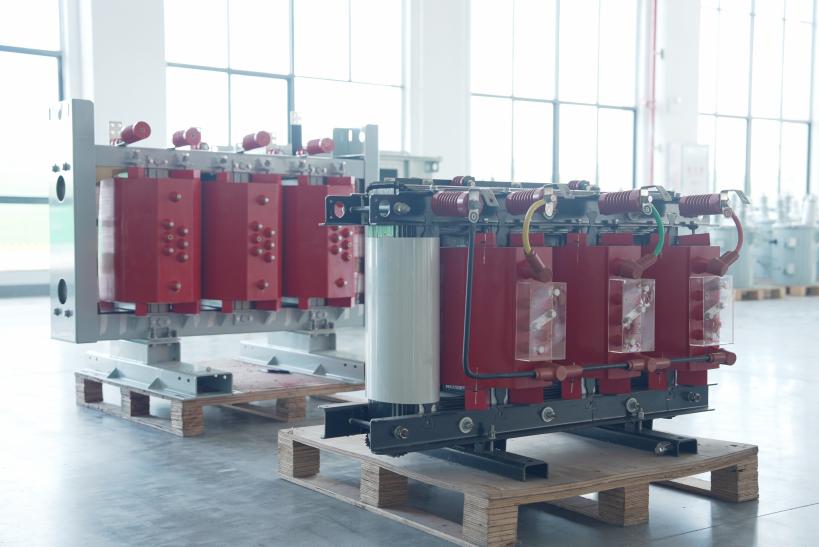

Tom qab kev pom zoo cov khoom, cov txheej txheem tsim khoom txuas ntxiv nrog cov tub ntxhais sib dhos, coil ntau lawm, kev kho rwb thaiv tsev thiab kev sib dhos zaum kawg. Txhua theem muaj nws tus kheej tswj cov kev cai vim hais tias hluav taws xob kev ua tau zoo nyob ntawm qhov tseeb ntawm ntau cov kauj ruam ntau lawm.
Lub tshuab nqus tsev casting yog ib qho tseem ceeb ntawm cov tshuab ziab khaub ncaws qhuav. Cov kws kho mob saib xyuas qhov kub thiab txias, lub tshuab nqus tsev thiab lub sij hawm kho thaum lub sij hawm tus txheej txheem kom muaj kev tiv thaiv zoo ib yam thoob plaws hauv cov qauv winding.
Ua ntej ua zaub mov xa tuaj, tiav transformers raug kuaj xyuas Hoobkas. Cov khoom tshuaj ntsuam xyuas muaj xws li rwb thaiv tsev tsis kam, winding tsis kam, voltage piv, dielectric tiv taus thiab ntsuas kub nce.
Cov qhabnias xeem tau raug kaw ua ke nrog cov ntaub ntawv tsim khoom rau kev taug qab zoo thiab kev tshuaj xyuas cov neeg siv khoom.
Technical Specifications
|
Yam khoom |
Kev piav qhia |
|
Yam khoom |
Qhuav Hom Distribution Transformer |
|
Rated Peev Xwm |
750kVA ua |
|
Theem |
Peb theem |
|
Ntau zaus |
50Hz / 60Hz |
|
Thawj Voltage |
Customized |
|
Secondary Voltage |
Customized |
|
Rwb thaiv tsev System |
Epoxy Resin Cast Insulator |
|
Txoj kev txias |
Huab cua txias (AN) |
|
Cov khoom siv tseem ceeb |
Grain-Silicon Steel Taw qhia |
|
Cov khoom siv winding |
Oxygen-Pob dawb |
|
Rwb thaiv tsev Class |
F / H Class |
|
Kev ntsuas kub |
PT100 Sensors |
|
Siv tau Standard |
IEC 60076: Ua |
Ntxiv cov hluav taws xob tsis muaj zog, suav nrog impedance voltage, vector pawg thiab cov ntaub ntawv kaw lus, raug soj ntsuam raws li qhov project.
Kev Tswj Xyuas Kev Tsim Khoom thiab Kev Pabcuam
Kev tswj xyuas zoo yog ua tiav thoob plaws hauv cov txheej txheem tsim khoom ntau dua li tsuas yog nyob rau theem kawg ntawm kev tshuaj xyuas.
Kev tshuaj xyuas cov khoom, kev saib xyuas cov txheej txheem thiab kev ntsuas hluav taws xob tau muab tso ua ke kom muaj kev sib luag ntawm qhov sib txawv ntawm cov transformer units. Kev saib xyuas tshwj xeeb yog muab rau cov rwb thaiv tsev zoo, kev sib dhos qhov tseeb thiab cov txiaj ntsig kev xeem.
Rau cov haujlwm thoob ntiaj teb, cov neeg siv khoom yuav xav tau cov ntaub ntawv kev ua ntej kev teeb tsa lossis kev pom zoo. EC INSULATOR tuaj yeem npaj cov lus qhia tshwj xeeb, kos duab, cov ntaub ntawv xeem thiab lwm yam ntaub ntawv ntsig txog kev tshuaj xyuas engineering.
Kev sib txuas lus thaum lub sijhawm ua haujlwm feem ntau yog tsom rau kev lees paub cov ntsiab lus kev ua haujlwm, zam qhov sib txawv ntawm cov ntaub ntawv tsim thawj zaug thiab cov khoom siv zaum kawg.
