EC Insulator Jiangxi Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm cov roj immersed hom transformer nyob rau hauv Suav teb. Nrog kev paub dhau los, peb tau cog lus los muab cov kev pabcuam zoo tshaj plaws. Thov koj xav tias dawb rau cov lag luam wholesale hwm roj immersed hom transformer ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas.

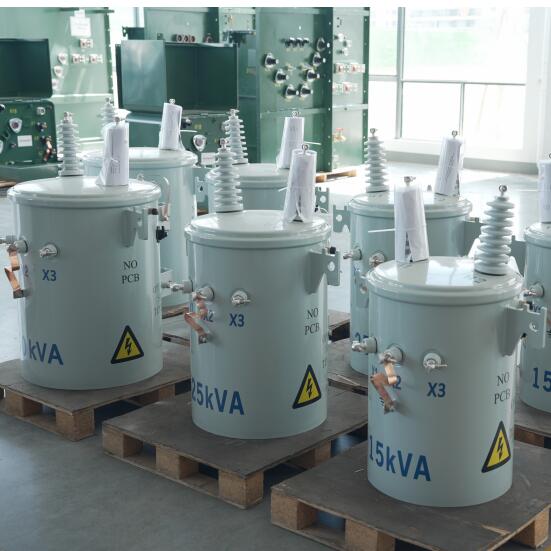

Product Description

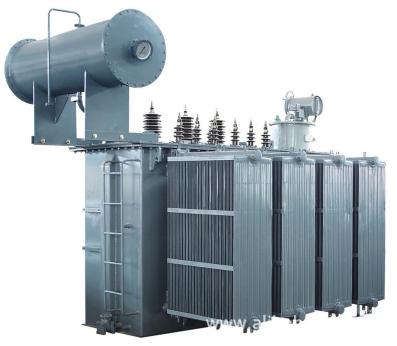

Cov roj immersed hom transformer immerses windings thiab core nyob rau hauv insulating roj, uas ua hauj lwm raws li rwb thaiv tsev thiab cua txias nruab nrab kom paub qhov voltage transformation los ntawm electromagnetic induction.
Nws muaj silicon steel core, windings, roj tank thiab insulating roj. Nrog rau kev ua haujlwm zoo thaum tshav kub kub dissipation thiab muaj zog tshaj lub peev xwm, nws suav nrog hom pa thiab hermetically kaw cov roj ntim hom.
Lub transformer ua haujlwm ruaj khov nrog lub suab qis thiab kev ua haujlwm siab. Nws yog dav siv nyob rau hauv nroog thiab nyob deb nroog lub zog faib hluav taws xob thiab tsim nyob rau hauv raws li cov txheej txheem IEC thiab GB.
Khoom zoo
Tag nrho cov roj immersed transformers yog tsim, tsim thiab tshuaj xyuas raws li cov cai hauv kev lag luam.
International Standards
- IEC 60076 Series (Lub zog hloov pauv)
- IEC 60296 (IEC 60296) Mineral insulating roj rau cov khoom siv hluav taws xob
Tuam Tshoj National Standards
- GB/T 1094 Series
- GB/T 6451Core Kev tsim kho
3.1 Cov khoom siv tseem ceeb
Tsawg- poob grain- taw qhia silicon steel txiav tsis muaj-load fais fab poob thiab boosts zog efficiency.

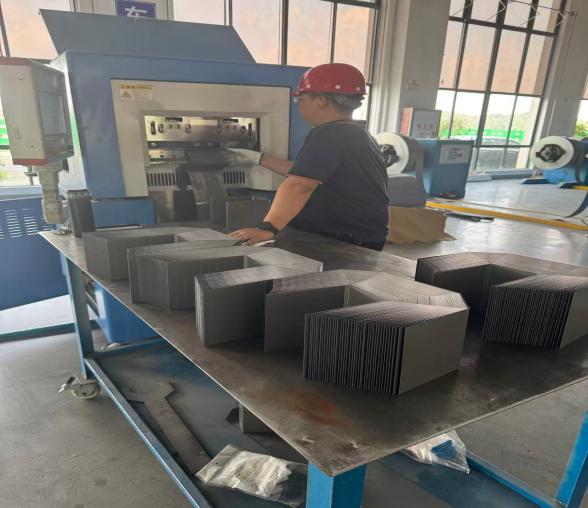

3.2 Lamination Structure
Stepped stacked core minimizes magnetic to, eddy poob thiab khiav suab nrov; insulating txheej muaj kev tiv thaiv saum npoo ntxiv.
3.3 Fastening Structure
Rigid clamping ncej xauv cov tub ntxhais kom ruaj khov, ua rau muaj kev vibration thiab lav ruaj khov ntev - lub sijhawm ua haujlwm.
Kev tiv thaiv Configuration
4.1 Sealing thiab Anti-kev tiv thaiv dej

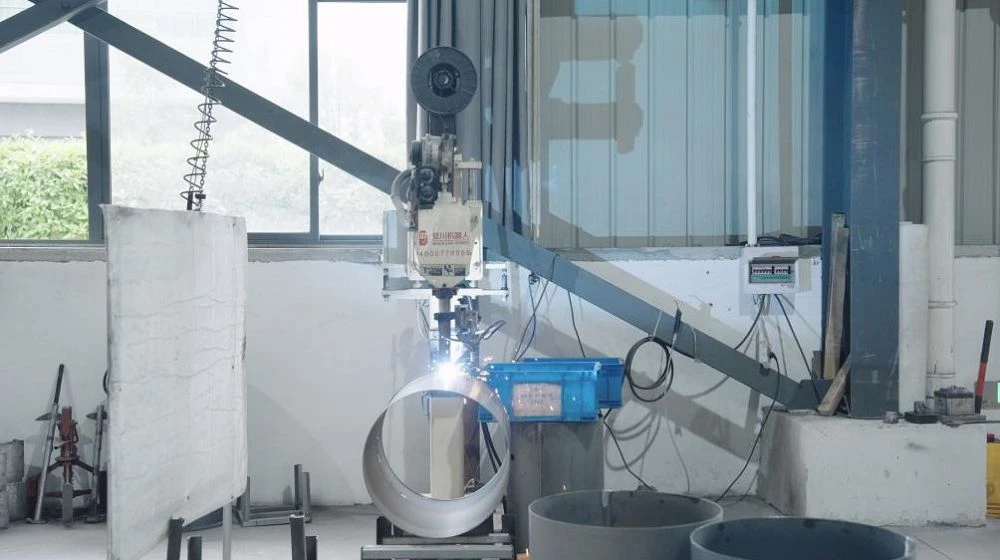

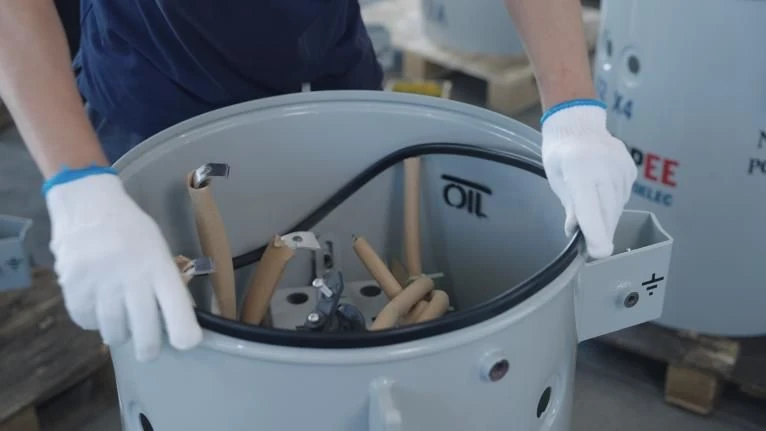

Cov roj immersed hom transformer adopts robust welded tank qauv. Optimized sealing tsim txo qhov kev pheej hmoo ntawm cov roj insulating thiab lav ruaj khov ntev - lub sijhawm ua haujlwm.
4.2 Tshaj-Kev tiv thaiv kub
Cov cuab yeej ntsuas kub tuaj yeem ntsia tau rau ntawm cov roj immersed hom transformer kom taug qab cov roj kub. Tswb los yog mus txawv tebchaws yuav tshwm sim thaum overheating tshwm sim los tiv thaiv kev puas tsuaj ntawm rwb thaiv tsev windings.
4.3 Tshaj dhau thiab luv-Kev tiv thaiv Circuit Court
Cov cuab yeej tiv thaiv zoo sib xws tuaj yeem tsim kho rau cov roj immersed hom transformer kom muaj kev tiv thaiv zoo tiv thaiv kev dhau thiab luv luv - Circuit Court faults thiab zam cov khoom burnout.
4.4 Earthing Protection
Txheem earthing terminals yog tseg rau ntawm lub tank ntawm cov roj immersed hom transformer. Txhim khu kev qha hauv av tshem tawm cov kev pheej hmoo ntawm induced overvoltage thiab txhim kho kev nyab xeeb ntawm kev ua haujlwm.

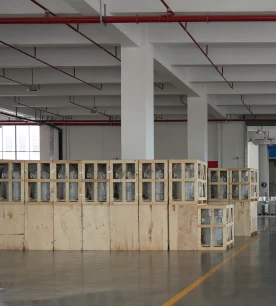

Ntim thiab Logistics
Cov roj immersed hom transformer yog ntim raws li cov khoom loj, kev thauj mus los thiab kev xa khoom. Kev tiv thaiv yog siv los tiv thaiv kev puas tsuaj thaum thauj khoom, thauj thiab khaws cia. Ua ntej ua zaub mov xa tuaj, lub transformer raug tshuaj xyuas thiab kho kom zoo kom muaj kev nyab xeeb kev thauj mus los. Ntim cov kev daws teeb meem xws li kev tiv thaiv ya raws thiab kev tiv thaiv kev cuam tshuam tuaj yeem muab tau ntev - kev xa khoom mus deb. Lub transformer tuaj yeem thauj los ntawm hiav txwv, txoj kev lossis kev tsheb ciav hlau raws li cov neeg siv khoom xav tau.
Kev Saib Xyuas thiab Kev Pabcuam Tiv Thaiv

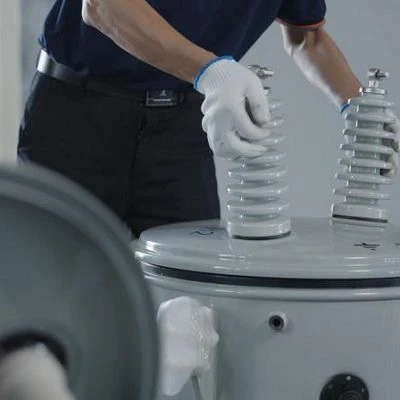

Cov roj immersed hom transformer yog tsim los txhim khu kev qha ntev - lub sijhawm ua haujlwm nrog kev saib xyuas yooj yim. Kev tshuaj xyuas tsis tu ncua ntawm qib roj, roj zoo, qhov kub thiab txias yog pom zoo kom ua haujlwm ruaj khov. Cov khoom tseem ceeb xws li bushings, terminals thiab cov cuab yeej tiv thaiv yuav tsum tau kuaj xyuas ib ntus kom muaj kev nyab xeeb. Kev txhawb nqa kev tshaj lij thiab kev saib xyuas kev taw qhia muaj nyob rau lub sijhawm ua haujlwm ntawm lub tshuab hloov pauv. Cov khoom seem thiab tom qab - kev muag khoom tuaj yeem muab tau raws li cov neeg siv khoom xav tau.
Standard Technical Parameters
5.1 Rated Peev xwm
Cov roj immersed hom transformer npog ntau yam qauv ntsuas muaj peev xwm kom tau raws li cov kev xav tau sib txawv ntawm lub zog. Customized capacities muaj nyob rau ntawm cov neeg siv khoom thov.
5.2 Rated voltage
Cov roj immersed hom transformer txhawb ntau qhov sib txuam ua ke ntawm cov hluav taws xob siab thiab tsis tshua muaj hluav taws xob, hloov mus rau qhov sib txawv ntawm qhov sib txawv ntawm cov kab hluav taws xob.
5.3 Poob thiab Zog Efficiency
Cov roj immersed hom transformer txais yuav tsawg- poob core thiab winding tsim, featuring tsis tshua muaj -load poob thiab load poob kom ua tau zoo zog-txuag nyhuv thaum lub sij hawm ua hauj lwm tas mus li.
5.4 Rwb thaiv tsev thiab kub nce
Cov roj immersed hom transformer ua raws li cov txheej txheem rwb thaiv tsev qib. Qhov kub nce ntawm windings thiab insulating roj tuaj yeem tswj tau nyob rau hauv qhov kev teev tseg raws li kev ua haujlwm ua haujlwm.
5.5 Cov xwm txheej ua haujlwm
Cov roj immersed hom transformer yog tsim rau kev teeb tsa sab hauv tsev thiab sab nraum zoov, yoog raws qhov kub thiab txias hauv cov xwm txheej ntawm cov khoom siv hluav taws xob.
Khoom zoo
Cov roj immersed hom transformer txais siab -kev ua tau zoo qis- poob silicon steel core thiab optimized winding qauv, zoo heev txo tsis muaj -load poob thiab load poob nrog zoo heev zog- txuag nyhuv.
Cov roj immersed hom transformer siv optimized stepped lamination thiab ib tug fastening qauv, uas zoo tswj kev co thiab suab nrov, kom ntseeg tau ruaj khov nyob rau hauv ntev - lub sij hawm tas mus li load.
Cov roj immersed hom transformer muaj cov khoom welded tank thiab txhim khu kev qha sealing kev ua tau zoo. Nws yog qhov tsim nyog rau qhov chaw nyob sab hauv tsev thiab sab nraum zoov uas muaj dej noo zoo- pov thawj, plua plav- pov thawj thiab tiv thaiv - muaj peev xwm laus.
Ntim & Logistics
Ntim schemes yog customized raws li transformer loj thiab thauj hom. Shockproof thiab noo noo-cov ntaub ntawv pov thawj tau ntxiv kom tsis txhob muaj kev sib tsoo thiab cov roj to thaum thauj khoom, thauj mus los thiab khaws cia. Txhua chav ua haujlwm tau soj ntsuam tag nrho thiab txhim kho ruaj khov ua ntej ua zaub mov xa tuaj.
Peb txhawb kev thauj mus los hauv hiav txwv, av thiab kev tsheb ciav hlau kom haum rau cov neeg siv khoom xav tau, nrog rau kev xa tawm fumigated ntoo pallets raws li kev ntim khoom.
Kev Kho & Tom Qab -Kev Pabcuam Muag
Qhov no transformer yog tsim rau ntev ruaj khov kev pab cuam nrog tsawg kawg nkaus tu txhua hnub. Cov neeg siv tsuas yog yuav tsum tsis tu ncua xyuas cov roj theem, roj zoo, khiav kub thiab sealing txheej txheem. Kev tshuaj xyuas ib ntus ntawm bushings, terminals thiab cov cuab yeej tiv thaiv tau pom zoo kom tshem tawm cov kev phom sij zais.
Peb muab kev pab tswv yim rau lub neej rau txhua tus muag transformers. Dhau li ntawm cov khoom seem tsis tu ncua, peb tom qab - pab pawg muag khoom teb sai sai rau cov neeg siv khoom txawv teb chaws 'kev ua haujlwm txhua hnub thiab kev nug txog kev saib xyuas.
