EC Insulator Jiangxi Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm peb theem roj immersed transformer nyob rau hauv Suav teb. Nrog kev paub dhau los, peb tau cog lus los muab cov kev pabcuam zoo tshaj plaws. Thov koj xav tias dawb rau cov lag luam wholesale hwm peb theem roj immersed transformer ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas.
Short Overview for Listing Page

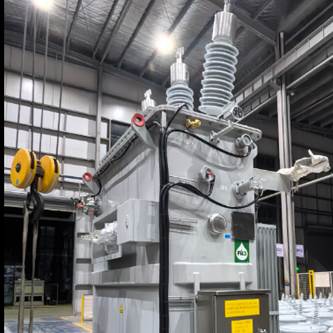

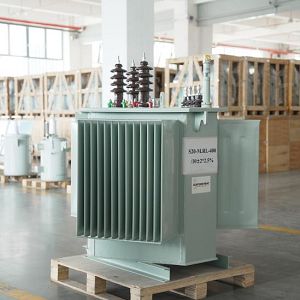

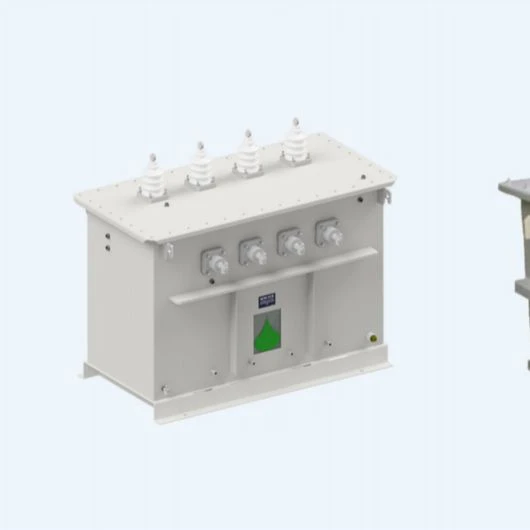

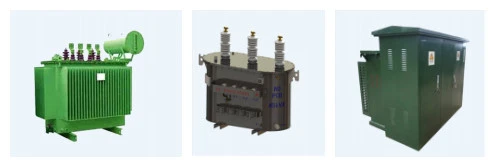

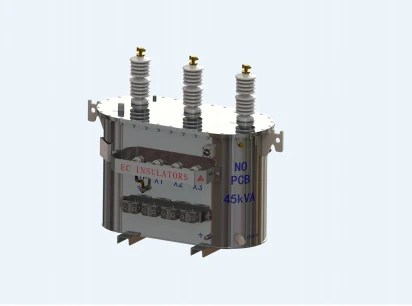

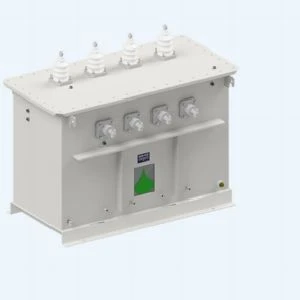

Peb -theem roj-immersed transformer submerges core thiab peb-theem windings nyob rau hauv insulating roj. Nrog insulating roj rau rwb thaiv tsev thiab txias, voltage transformation yog tiav los ntawm electromagnetic induction.
Cov khoom tseem ceeb muaj xws li nplej- taw qhia silicon steel core, windings, roj tank thiab roj insulating. Muaj ob hom: hom pa thiab hermetically kaw roj - hom puv.
Nws nta txhim khu kev qha tshav kub dissipation, muaj zog overload tsis kam, ruaj khov kev ua tau zoo thiab kev sib tw nqi. Feem ntau siv nyob rau hauv industrial fais fab mov thiab nroog & nyob deb nroog tis networks. Txhua chav nyob yog tsim thiab sim ua raws li IEC thiab GB cov qauv.
Product Details & Advantages
Cov Qauv Ua Haujlwm
Txhua peb -theem roj-immersed transformer yog tsim, tsim thiab tshuaj xyuas raws li kev lag luam hauv tsev thiab thoob ntiaj teb specifications.
International Standards
- IEC 60076 Series (Lub zog transformers)
- IEC 60296: Mineral insulating roj siv rau cov khoom siv hluav taws xob
Suav National Standards
- GB/T 1094 Series
- GB/T 6451
Core Kev Tsim Kho
3.3 Integrated Clamping Ncej
Hnyav- lub luag haujlwm sib xyaw ua ke clamping thav duab raug ntsia kom ceev cov tub ntxhais kom ruaj khov. Nws tiv thaiv cov khoom xoob thiab kev vibration nyob rau hauv lub sijhawm ntev txuas ntxiv, ruaj khov sib nqus circuits thiab txhim khu kev qha txhua yam muaj zog rau kev ua haujlwm ntev -.
Transformer Txoj Cai Ua Haujlwm
Lub hauv paus ntsiab lus ua haujlwm tuaj yeem piav qhia yooj yim raws li lub voj voog: hluav taws xob → magnetism → hluav taws xob.
Thaum alternating voltage yog siv rau windings, alternating magnetic teb yuav generated. Cov txheej txheem no hu ua excitation. Lub alternating magnetic teb ces induces alternating voltage ntawm lwm windings, raws li txoj cai: hluav taws xob generates hlau nplaum, thiab hlau nplaum generates hluav taws xob.
High-voltage thiab low-voltage windings tsis muaj hluav taws xob txuas ncaj qha. Kev hloov hluav taws xob nruab nrab ntawm lawv yog nyob ntawm thaj chaw sib nqus.
Kev ceeb toom tseem ceeb: Lub tshuab hloov pauv tsis tuaj yeem hloov pauv tus nqi hluav taws xob. Nws tsuas converts voltage thiab tam sim no, nrog lub hwj chim khaws cia roughly tas li. Qhov voltage piv ntawm high-voltage thiab low-voltage (primary thiab secondary) windings sib npaug lawv qhov sib piv.
Kev tiv thaiv Configuration
4.1 Sealing & Anti- tiv thaiv dej
Cov roj welded roj tank muaj zog tau txais yuav rau peb peb -theem roj- raus transformers. Optimized sealing qauv txo qhov kev pheej hmoo ntawm cov roj to thiab txhawb nqa ntev - lub sij hawm ruaj khov.
4.2 Tshaj-Kev tiv thaiv kub
Cov ntsuas kub ntsuas ntsuas tuaj yeem tsim los ntsuas cov roj kub hauv lub sijhawm. Tswb los yog lub teeb liab mus txawv tebchaws yuav tshwm sim thaum muaj cua sov dhau los, tsis txhob muaj kev puas tsuaj mus tas li rau cov rwb thaiv tsev winding.
4.3 Tshaj dhau & luv-Kev tiv thaiv Circuit Court
Txhawb nqa txuam nrog kev tiv thaiv sab nraud. Cov cuab yeej no muaj kev tiv thaiv zoo tiv thaiv overload thiab luv luv -circuit faults, tiv thaiv cov khoom burnout.
4.4 Earthing Protection
Txheem earthing terminals yog tseg rau ntawm cov roj tank. Kev siv hauv av kom zoo tshem tawm cov kev pheej hmoo los ntawm induced overvoltage thiab txhim kho kev nyab xeeb ntawm kev ua haujlwm.
Standard Technical Parameters
5.1 Rated Peev xwm
Peb muab ntau tus qauv ntsuas peev xwm los ua kom tau raws li qhov xav tau sib txawv. Kev cai muaj peev xwm yog txais tau raws li qhov kev thov.
5.2 Rated voltage
Ntau qhov sib xyaw ua ke ntawm cov hluav taws xob siab thiab tsis tshua muaj hluav taws xob tuaj yeem raug teeb tsa, sib piv cov kab hluav taws xob sib txawv thoob ntiaj teb.
5.3 Loss & Zog Efficiency
Tsawg- poob core thiab winding qauv raug saws. Tsawg tsis muaj-load poob thiab load poob kom paub meej lub zog zoo-txuag kev ua haujlwm thaum ua haujlwm tas mus li.
5.4 Rwb thaiv tsev & Kub nce
Cov khoom ua raws li cov txheej txheem rwb thaiv tsev. Raws li kev ntsuas kev ua haujlwm, qhov kub nce ntawm windings thiab cov roj insulating tuaj yeem tswj tau nyob rau hauv qhov kev teev tseg.
5.5 Cov xwm txheej ua haujlwm
Haum rau kev teeb tsa sab hauv tsev thiab sab nraum zoov, yoog raws li qhov kub thiab txias hauv cov chaw siv hluav taws xob thiab chaw faib khoom.
Khoom zoo
Premium insulating roj ua haujlwm li rwb thaiv tsev thiab cua txias nruab nrab. Nws ua rau txawm tias qhov hluav taws xob faib thiab cov khoom siv hluav taws xob ruaj khov, txhawb kev nyab xeeb thiab ntev - kev pabcuam.
Nruab nrog qis- poob lis- taw qhia silicon steel core ntxiv rau qhov ua kom zoo tshaj qhov kev sib tw winding. Tsis muaj- load poob thiab load poob yog tswj kom ua tiav lub zog zoo-txuag nyhuv.
Optimized core stacking thiab integrated fastening qauv zoo heev txo kev co thiab khiav suab nrov. Kev ua tau zoo nyob ib puag ncig nyob rau hauv lub sijhawm ntev loads.
Integrally welded roj tso tsheb hlau luam ua ke nrog siab - zoo sealing qhov chaw xa cov dej noo zoo - pov thawj, plua plav- pov thawj thiab tiv thaiv - muaj peev xwm corrosion. Cov chav nyob tuaj yeem ua haujlwm tsis tu ncua hauv qhov chaw nyuaj sab hauv tsev thiab sab nraum zoov.
Proven mature qauv ua rau tsis tshua muaj zaus. Kev tu txhua hnub yog qhov yooj yim; Lub neej ua haujlwm ntev coj cov txiaj ntsig kev lag luam zoo.
Kev Tswj Xyuas Zoo
Raw Material Inspection
Tag nrho cov ntaub ntawv raw suav nrog cov nplej- taw qhia silicon steel, oxygen-cov tooj liab dawb, los tiv thaiv- cov hlau nplaum thiab cov roj ntxhia insulating yuav dhau los ntawm kev tshuaj xyuas nruj ua ntej tsim khoom. Peb sim magnetic permeability, tooj liab tsis kam, rwb thaiv tsev cov khoom ntawm cov roj thiab vuam zoo ntawm cov tso tsheb hlau luam kom tshem tawm cov khoom tsis tsim nyog.

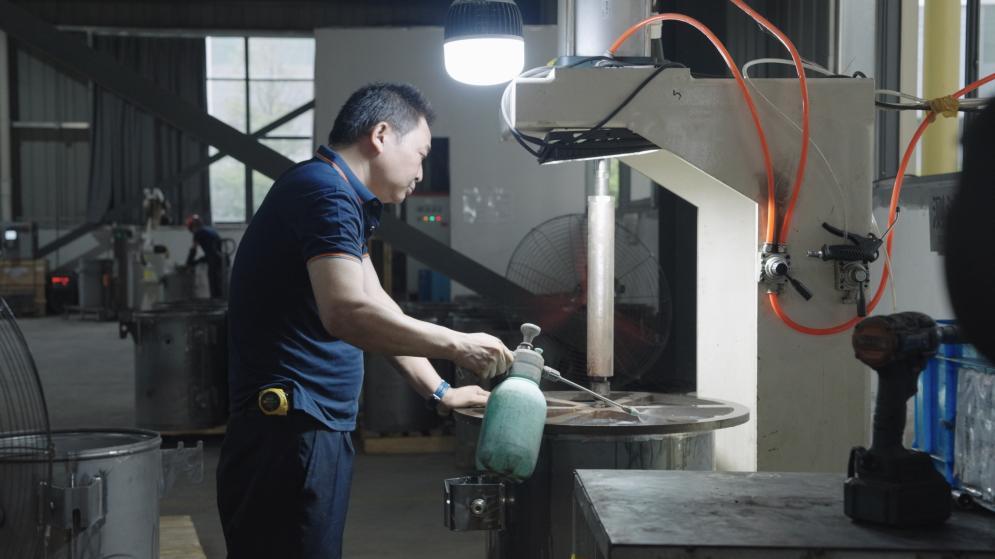

Hauv -kev soj ntsuam

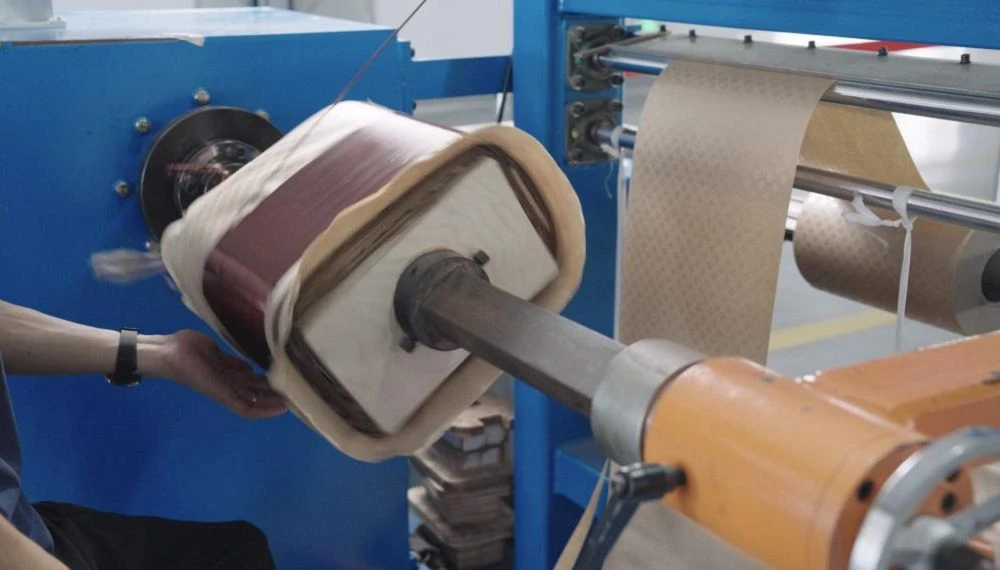

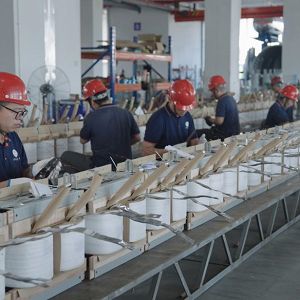

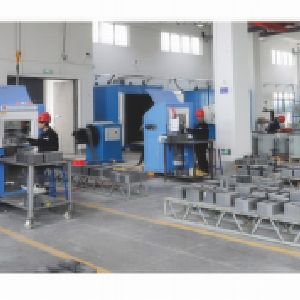

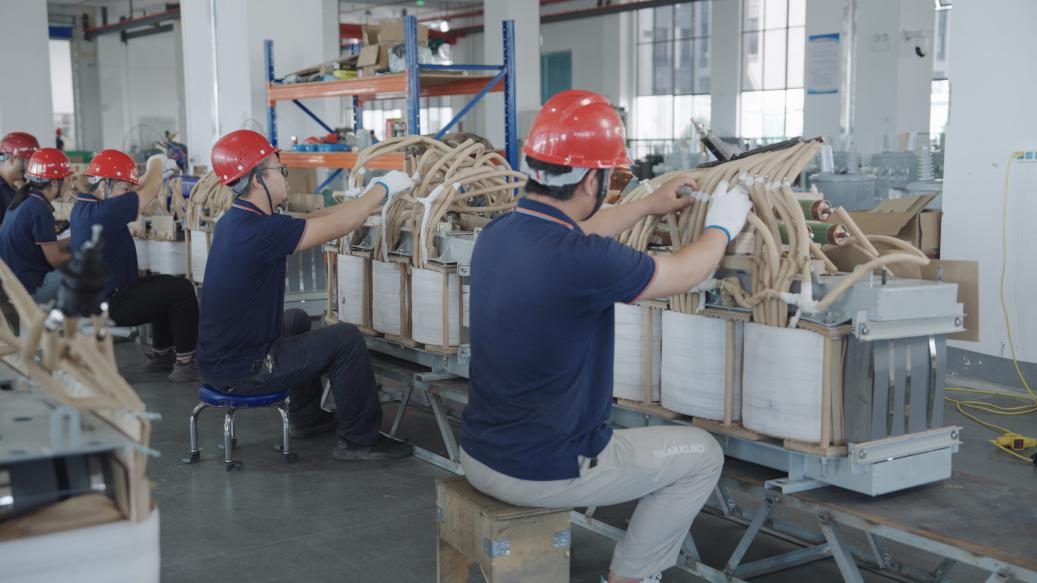

Kev tshuaj xyuas yog nqa tawm thoob plaws hauv cov theem ntau lawm: core stacking, winding wrapping, tank vuam thiab roj filling. Peb nruj me ntsis xyuas sealing nruj thiab winding clamping zog, kom tsis txhob muaj roj to, kev co thiab rwb thaiv tsev tsis ua hauj lwm thaum lub sij hawm ntev - siv sab nraum zoov.

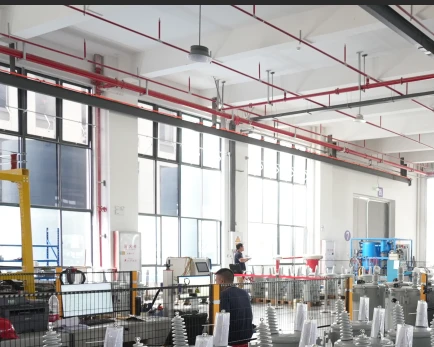

Kev Ntsuas Cov Khoom Ua tiav tiav
Txhua lub tshuab hluav taws xob tau txais kev sim tag nrho: tsis muaj -load poob, load poob, dielectric tiv taus voltage, winding DC tsis kam thiab roj nruj. Ua kom tiav cov ntaub ntawv kuaj xyuas lub Hoobkas tuaj yeem muab rau qhov kev lees paub.
Ua raws li International Standards
Tag nrho cov transformers ua raws li IEC 60076, GB / T 1094, GB / T 6451 thiab lwm cov qauv kev lag luam hluav taws xob loj. Thib peb- daim ntawv pov thawj thib peb muaj yog tias cov neeg siv khoom xav tau.
Flexible OEM & ODM Kev Pabcuam Kev Cai
Custom Electrical Parameters
Rated peev xwm, high / low voltage ua ke thiab kev sib txuas pab pawg tuaj yeem hloov kho raws li cov qauv hauv zos, cov kev xav tau thauj khoom. Haum rau photovoltaic fais fab chaw nres tsheb, chaw ua si, chaw ua haujlwm fais fab hauv nroog thiab cov haujlwm tsuas.
Custom Structure & Zoo
Cov neeg siv khoom tuaj yeem xaiv hermetically kaw lub tank los yog tus qauv tsim lub tank. Los tiv thaiv - xim txheej xim, lub hauv paus loj thiab nqa lub log tuaj yeem hloov kho kom haum rau kev teeb tsa. Cov qauv tshwj xeeb rau siab - thaj chaw siab thiab ntug hiav txwv ntsev- huab cua puag ncig muaj.
Kev kos duab & qauv txhawb nqa
2D layout drawings thiab technical datasheets tuaj yeem muab rau kev pom zoo ua ntej kev txiav txim raug cai. Cov qauv me me -batch qauv tuaj yeem ua rau kev sim ua haujlwm. Kev cai hom logos tuaj yeem luam tawm ntawm cov roj tank rau kev txiav txim ntau.
Custom Packaging Solution
Txheem export fumigated ntoo pallets yog siv rau ntim. Peb tuaj yeem npaj cov khoom siv hluav taws xob tsis zoo, cov cim kev xa khoom thiab cov ntaub ntawv xa tawm tag nrho raws li qhov xav tau.
Ntiaj teb no ib tug - nres Tom qab - muag kev them nyiaj yug
Fast Technical Support
Peb pab neeg muag khoom teb rau cov lus nug tam sim. Cov kws tshaj lij hluav taws xob tsim hluav taws xob pab xaiv cov qauv thiab tsim cov khoom siv hluav taws xob hloov pauv rau koj cov haujlwm.
Ntev -lub sij hawm Warranty
Tag nrho peb -theem roj-immersed transformers tuaj nrog lub Hoobkas warranty. Tsim los rau ntau tshaj 20 xyoo ntawm kev ruaj ntseg sab nraum zoov. Cov ntsiab lus txuas ntxiv tuaj yeem tham txog kev txiav txim ntau thiab EPC cov haujlwm.
Kev daws teeb meem zoo
Peb muab kev hloov pauv dawb rau kev tsim khoom lossis kev puas tsuaj tshwm sim thaum caij tsheb npav. Ib qho - ntawm - ib qho kev taw qhia tej thaj chaw deb ntawm kev teeb tsa, xaim thiab xaim hluav taws xob yog muab rau cov haujlwm nruab nrab & loj fais fab.
Full Order Tracking
Peb khaws cov neeg siv khoom tshiab ntawm cov tub ntxhais sib dhos, winding ntau lawm, Hoobkas kuaj thiab sijhawm xa khoom xa tuaj. Ua kom tiav cov ntaub ntawv xa tawm nrog rau cov ntawv xa nyiaj ua lag luam, cov npe ntim khoom, daim ntawv pov thawj ntawm lub hauv paus chiv keeb thiab cov ntawv qhia txog kev hloov pauv yuav muab tag nrho.
Kev paub nplua nuj nyob txawv teb chaws
Peb cov khoom raug xa tawm mus rau South America, Southeast Asia, Middle East thiab Africa. Lawv tau siv dav hauv cov phiaj xwm hluav taws xob, cov chaw ua haujlwm substations, cov chaw photovoltaic thiab cov phiaj xwm kev tsheb ciav hlau.
Cov lus nug nquag
