EC Insulator Jiangxi Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm cov roj raws transformer nyob rau hauv Suav teb. Nrog kev paub dhau los, peb tau cog lus los muab cov kev pabcuam zoo tshaj plaws. Thov koj xav tias dawb rau cov lag luam wholesale hwm roj raws li transformer hauv Suav teb nov los ntawm peb lub hoobkas.
Khoom Taw Qhia
Roj raws li transformer siv cov roj insulating li rwb thaiv tsev thiab cua txias nruab nrab kom paub qhov voltage hloov los ntawm electromagnetic induction.

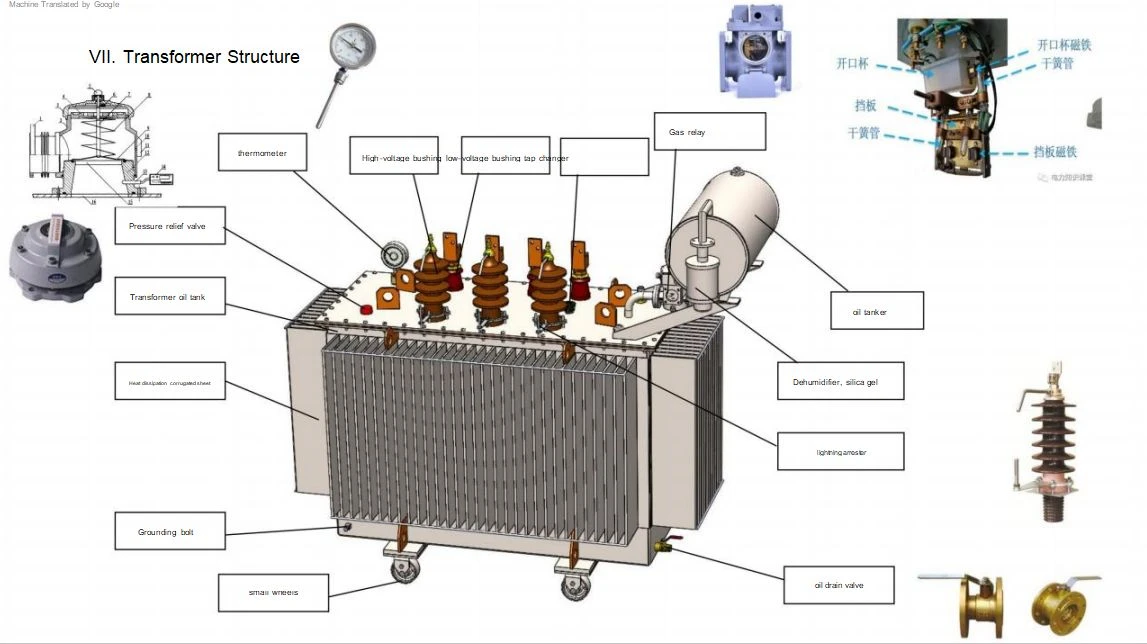

Nws muaj cov tub ntxhais hlau, windings, insulating roj thiab tank. Cov cua kub zoo heev ua rau muaj peev xwm loj dua thiab muaj zog tshaj qhov muaj peev xwm. Cov koob no suav nrog cov pa roj rau hom thiab hermetically kaw roj puv transformer.
Cov khoom nta mature technology, tsawg raug nqi thiab ua haujlwm ruaj khov. Haum rau cov phiaj xwm hluav taws xob thiab kev faib khoom lag luam.
Ua raws li IEC thiab GB cov qauv.
Product Details/Product Advantages
Cov Qauv Ua Haujlwm
- Cov roj raws li qhov hloov pauv no yog tsim, tsim thiab sim ua raws li cov qauv hauv qab no.
- International Standards
- IEC 60076 Series (Lub zog hloov pauv)
- IEC 60296 (IEC 60296) Mineral insulating roj rau cov khoom siv hluav taws xob
- Suav National Standards
- GB/T 1094 Series
- GB/T 6451
Daim ntawv ceeb toom:
Roj-immersed transformers muaj lawv cov coil cores kaw rau hauv lub tank roj uas muaj roj. Lawv haum rau kev siv sab nraum zoov, tab sis cov roj tuaj yeem hlawv thiab tawg. Lawv tiv taus cov pa phem thiab tsis tuaj yeem ntsia tau rau hauv cov tsev. Lawv yuav tsum yog
ntau tshaj 5 meters deb ntawm cov neeg nyob. Yog tias tau teeb tsa hauv tsev, lawv yuav tsum nyob hauv chav hluav taws xob sib cais, thiab tsis muaj leej twg yuav tsum nyob hauv 5 meters ntawm lawv.
1. CoreConstruction
3.1 Cov khoom siv tseem ceeb
Nws txais cov qib siab -kev ua tau zoo lis- cov ntawv qhia txog silicon steel nrog qhov poob qis thiab siab sib nqus permeability, txo qis tsis muaj -load poob thiab txhim kho lub zog- txuag kev ua haujlwm.
3.2 Lamination Structure
Nws siv optimized stepped lamination qauv. Staggered stacking txo cov hlau nplaum sib nqus thiab eddy tam sim no poob thiab suppresses kev khiav hauj lwm suab nrov. High-kub insulating kua roj vanish yog coated rau ntawm qhov chaw tseem ceeb.
3.3 Fastening Structure
Nws yog txawm peem rau nrog ib tug nruj clamping qauv. Txhim khu kev ruaj ntseg kom tsis txhob muaj kev vibration thiab xoob thaum lub sijhawm ua haujlwm ntev -, kom ruaj khov sib nqus Circuit Court thiab kev ua haujlwm zoo.
Kev tiv thaiv Configuration
4.1 Sealing & Anti- tiv thaiv dej
4.2 Tshaj-Kev tiv thaiv kub
4.3 Tshaj dhau & luv-Kev tiv thaiv Circuit Court
4.4 Earthing Protection
Txheem earthing terminals yog tseg rau ntawm lub tank ntawm Nws. Kev ntseeg siab hauv av tshem tawm cov kev pheej hmoo ntawm overvoltage thiab txhim kho kev nyab xeeb ntawm kev ua haujlwm.
Standard Technical Parameters
Cov roj raws li transformer npog ntau yam ntawm cov qauv ntsuas muaj peev xwm ua tau raws li qhov sib txawv ntawm lub zog xav tau. Kev cai muaj peev xwm muaj raws li cov neeg siv khoom xav tau.
Nws txhawb ntau qhov sib xyaw ua ke siab thiab tsis tshua muaj hluav taws xob, hloov mus rau qhov sib txawv ntawm kab sib chaws voltage thiab kev ua haujlwm.
Nws txais yuav tsawg- poob core thiab winding tsim, featuring tsis tshua muaj - load poob thiab load poob, uas ua kom lub zog siab -txuag efficiency thaum lub sij hawm ntev - ua hauj lwm.
Nws tuav cov txheej txheem rwb thaiv tsev zoo nrog qhov tsim nyog qhov kub thiab txias nce kev ua tau zoo, ua kom muaj zog dielectric ruaj khov nyob rau hauv kev ua haujlwm tsis tu ncua.
Nws yog tsim rau sab nraum zoov thiab sab hauv tsev installation, yoog rau cov pa ambient kub, av noo thiab kev lag luam thiab thaj chaw hluav taws xob faib chaw.
Khoom zoo
Nws siv siab -cov roj insulating zoo li dielectric thiab txias nruab nrab. Nws muab cov thermal dissipation thiab txhim khu kev qha rwb thaiv tsev kev ua tau zoo, zoo stabilizing qhov kev khiav hauj lwm kub thiab tsis txhob rwb thaiv tsev puas.
Nws txais cov cuab yeej tsim khoom lag luam thiab tsim qauv nruj. Nrog kev vibration qis, tsis tshua muaj paug tawm thiab muaj zog ib puag ncig adaptability, nws tuaj yeem ua haujlwm ruaj khov rau lub sijhawm ntev hauv ntau yam kev faib hluav taws xob.
Nws muaj qhov zoo thermal stability thiab muaj zog tshaj lub peev xwm piv nrog cov khoom siv hluav taws xob zoo tib yam. Nws tuaj yeem tiv taus qhov cuam tshuam tam sim no thiab hloov mus rau qhov hloov pauv hloov pauv.
Nws nta cov qauv yooj yim thiab cov txheej txheem paub tab. Nws muaj cov nqi tsim khoom qis dua thiab kev ua haujlwm ruaj khov, ua rau tsis muaj kev saib xyuas txhua hnub nyuaj thiab ua haujlwm ntev.
Nws yog tsim rau sab hauv tsev thiab sab nraum zoov kev faib hluav taws xob, chaw ua si, thaj chaw nyob thiab hauv nroog fais fab, ua tau raws li ntau yam qauv thiab nruab nrab -load fais fab mov yuav tsum.
OEM & Customization
Txhawb kev cai voltage, logo, tiv thaiv - kev kho corrosion.
Kev Tswj Xyuas Zoo
Tag nrho cov transformers tiav lawm dhau los ntawm lub Hoobkas yuav tsum tau kuaj ib los ntawm ib qho ua ntej xa khoom.
Tsis muaj -load test: Tshawb xyuas lub zog tsis ua haujlwm thiab tsis ua haujlwm tam sim no ntawm chav tsev
Load test: Txheeb xyuas qhov poob thiab luv luv - cov ntaub ntawv hauv Circuit Court impedance nyob rau hauv rated load
Dielectric withstand test: Txheeb xyuas qhov kev ua tau zoo ntawm cov rwb thaiv tsev ntawm high-voltage windings thiab tank hauv av
Induced voltage test: Tshawb xyuas inter-tig thiab inter-layer longitudinal rwb thaiv tsev, khiav ntawm ob chav voltage & ob zaus
Rwb thaiv tsev ntsuas: Siv megohmmeter los ntsuas kev tiv thaiv kev tiv thaiv ntawm HV winding, LV winding thiab hauv av
DC winding resistance test: Ntsuas DC tsis kam ntawm txhua ntu kais ntawm qhov siab thiab qis voltage coils
Transformation ratio & vector group test: Calibrate voltage transformation ratio thiab check winding connection mode
Kev kuaj paug ib nrab: Cov khoom kuaj no tsuas yog xav tau rau cov khoom siv qhuav- hom transformers
Kev ntsuas roj nruj: Sau lub tank nrog cov roj tiv thaiv thiab sawv ntsug rau 24 teev; tsis pub muaj roj los yog roj
Dhau li ntawm cov kev ntsuam xyuas niaj hnub, cov qauv qauv kuaj tau ua nyob rau hauv thawj cov qauv, suav nrog kev ntsuas hluav taws xob impulse, luv luv luv luv -circuit withstand test, ntsuas kub nce thiab khiav suab nrov.
Tom qab- muag
Kev taw qhia chaw taws teeb rau kev teeb tsa & kev daws teeb meem
Txheem thoob ntiaj teb warranty
Lwm tus
- Daim ntawv thov: Fais fab daim phiaj, photovoltaic, industrial tej yaam num
- Kev Them Nyiaj: T / T, L / C thaum pom
- Ntim: Export ntoo pallet, haum rau kev xa khoom hiav txwv
