EC Insulator Jiangxi Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg uas muaj kev ncua ncua kev kawm ntawv insulator nyob rau hauv Suav teb. Nrog kev paub dhau los, peb tau cog lus los muab cov kev pabcuam zoo tshaj plaws. Thov koj xav tias dawb rau cov lag luam wholesale premium composite suspension insulator ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas.

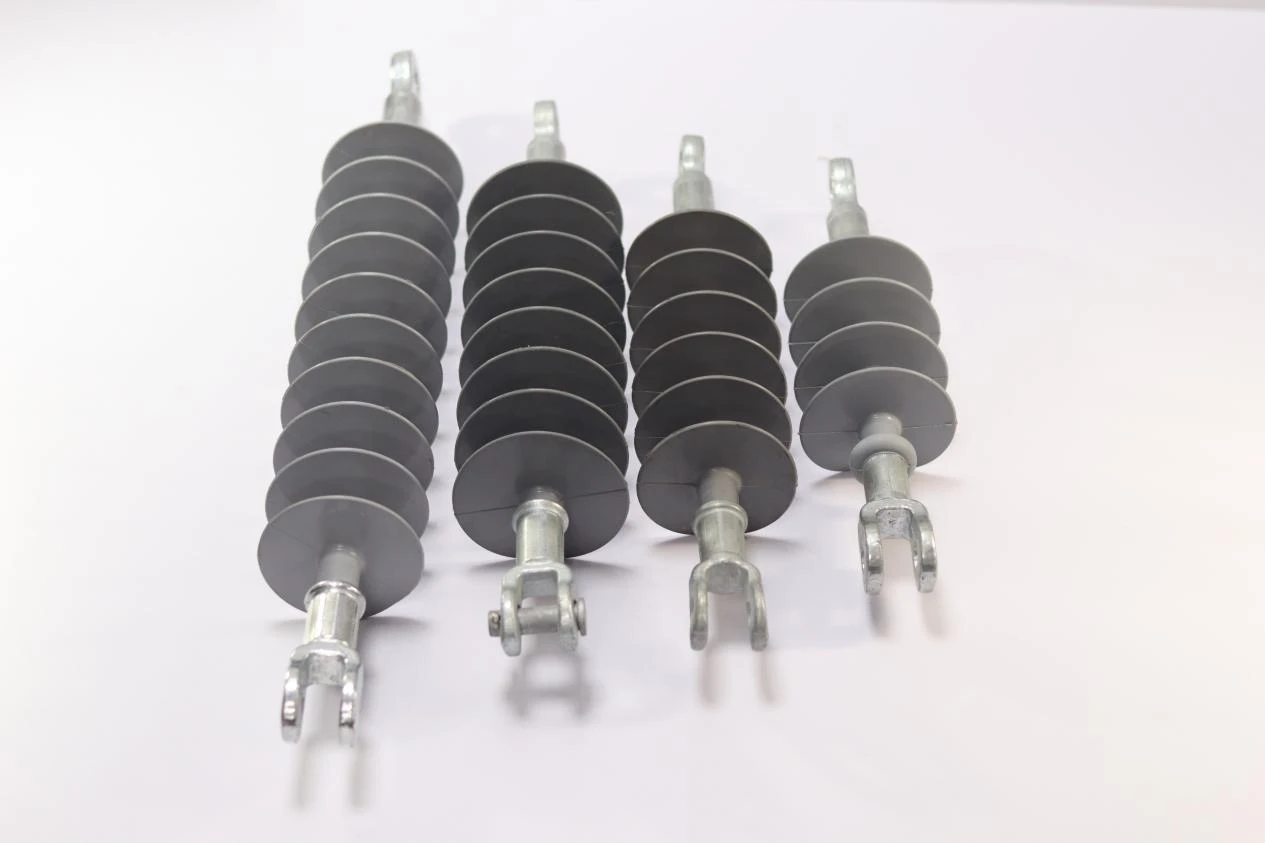

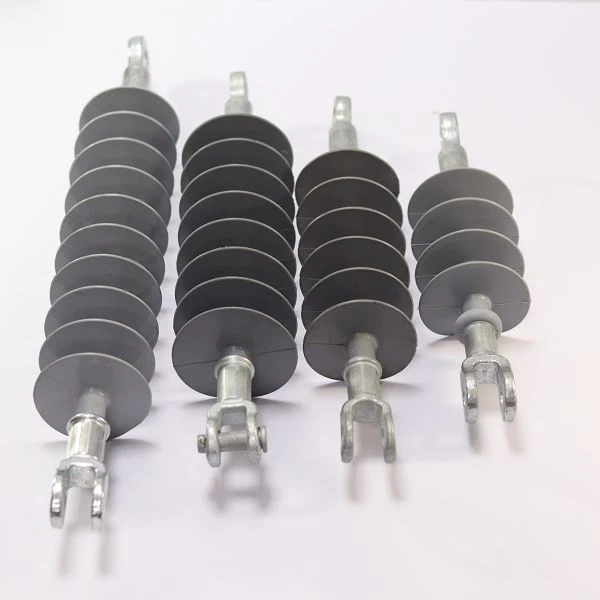

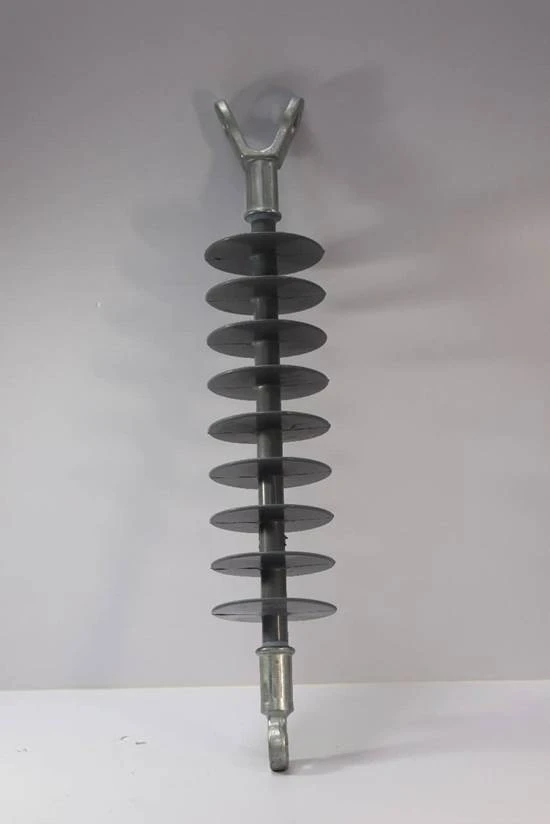

Product Overview
Peb muab cov hluav taws xob hluav taws xob sib txuas rau cov khoom siv hluav taws xob. Ntau tus neeg siv hluav taws xob siv hluav taws xob xaiv cov khoom siv hluav taws xob sib txuas no thaum kho cov kab hluav taws xob sab nraum zoov, tshwj xeeb tshaj yog nyob rau hauv cov cheeb tsam uas muaj kuab paug hnyav lossis dej hiav txwv ntsev pos huab yaig. Ua nrog hwm silicone roj hmab vaj tse thiab muaj zog FRP core pas nrig, qhov insulator no ua tau zoo heev nyob rau hauv ntev - UV raug thiab av noo, hloov huab cua. Nws ua tau zoo txo cov teeb meem kev ua pa phem uas nquag cuam tshuam rau cov khoom siv plooj (porcelain insulators). Peb muaj ntau yam qauv uas npog 15kV txog 525kV, uas zoo kawg nkaus ua tau raws li ntau yam kev xav tau rau cov neeg ua haujlwm fais fab thiab pab pawg ua haujlwm.
Nta & Qhov Zoo
- Txais yuav qhov kev ncua deb ntawm kev tsim tawm, qhov insulator no muab kev tiv thaiv zoo tshaj - muaj peev xwm ua pa phem. Nws khiav ruaj khov txhua xyoo puag ncig txawm tias nyob rau hauv ib puag ncig hnyav xws li ntug dej hiav txwv ntsev tsuag thaj chaw, thaj chaw muaj kev lag luam hnyav thiab cov kab hauv roob uas muaj plua plav kis tau tus kab mob uas muaj cov kab mob tsis tu ncua.
- Piv nrog cov plooj (porcelain) loj thiab iav insulators, cov khoom no nta ultra-lub teeb yuag. Nws yooj yim heev rau ntawm - chaw tuav thiab kev teeb tsa ua haujlwm, txo qis kev tsim kho cov nqi zog thiab txhim kho tag nrho cov kab erection efficiency.
- Sab nrauv silicone sheath yog cov kws kho mob kom tiv thaiv kev taug qab, kev laus thiab kev puas tsuaj ultraviolet. Txawm tias tom qab ntev - lub sij hawm sab nraum zoov raug ntau xyoo lawm, nws tuav ruaj khov hydrophobic kev ua tau zoo thiab yuav tsis tawg los yog degrade yooj yim.

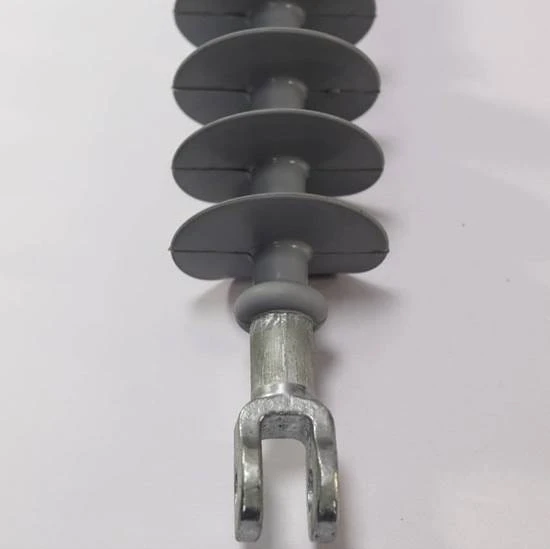

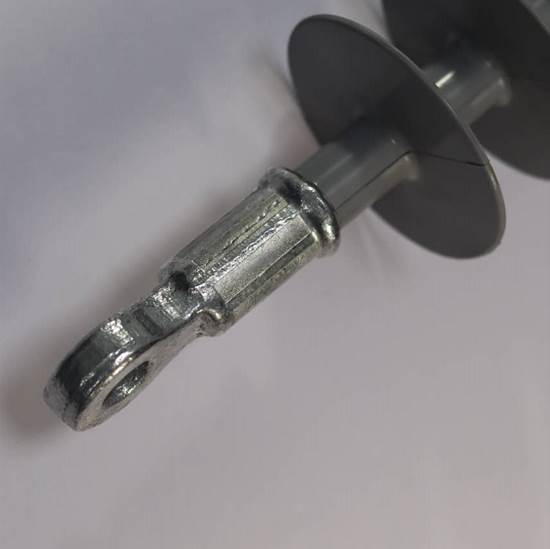

- Tag nrho cov hlau kawg fittings yog ua tiav nrog kub -dip galvanizing kev kho mob. Qhov no txhim kho cov neeg kho tshuab tensile lub zog loj, tso cai rau lub insulator kom tiv taus cua siab thiab ntev - lub sij hawm txhua yam rub lub zog thaum lub sijhawm ua haujlwm.
Technical Specifications
|
Daim duab No. |
Hom |
Rated Voltage (kV) |
Specified Mechanical Tensile Load (kN) |
Coupling Size |
Ntu Length (mm) |
Min arcing nrug (mm) |
Min creepage nrug (mm) |
Hluav taws xob tiv taus voltage (kV) |
Lub zog ntub dej zaus voltage (kV) |
|
1 |
FBX-15/70 |
15 |
70 |
16 |
343 |
186 |
430 |
140 |
55 |
|
2 |
FBX-25/70 |
25 |
70 |
16 |
446 |
289 |
645 |
150 |
75 |
|
3 |
FBX-36/70 |
36 |
70 |
16 |
525 |
377 |
900 |
210 |
95 |
|
4 |
FBX-69/70 |
69 |
70 |
16 |
860 |
665 |
2220 |
410 |
185 |
|
5 |
FBX-115/112 |
115 |
120 |
19 |
1308 |
1022 |
3700 |
530 |
230 |
|
6 |
FBX-138/110 |
138 |
120 |
19 |
1520 |
1292 |
3650 |
550 |
250 |
|
7 |
FBX-220/120 |
220 |
120 |
19 |
3202 |
3064 |
11820 |
1000 |
395 |
|
8 |
FBX-525/160 |
525 |
160 |
22 |
6225 |
6034 |
23630 |
2250 |
740 |
Nco tseg:
- Xaus fittings tuaj yeem hloov kho raws li cov neeg siv khoom xav tau.
- Kev cai tsim thiab kev tsim khoom muaj raws li cov neeg siv khoom kos duab.
Raw Khoom
Peb nruj me ntsis xaiv siab - cov ntaub ntawv zoo rau txhua qhov insulator kom lav lub neej ntev thiab kev ua haujlwm ruaj khov. Cov tub ntxhais sab hauv pas nrig yog ua los ntawm siab - lub zog fiberglass reinforced yas, featuring zoo tensile kuj thiab cov yam ntxwv stability. Lub tsev tiv thaiv sab nrauv txais siab - kub vulcanized silicone roj hmab, uas tuaj yeem tiv taus ozone corrosion thiab muaj zog UV hluav taws xob sab nraum zoov. Tsis tas li ntawd, tag nrho cov khoom siv hlau yog kub-dip galvanized, muab kev tiv thaiv xeb ruaj khov rau ntev - lub sijhawm ua haujlwm sab nraum zoov.
Daim ntawv thov teb
Qhov sib xyaw insulator no tau siv dav hauv ntau yam kev sib kis hluav taws xob. Nws yog feem ntau siv rau nruab nrab thiab high voltage overhead kis kab, substation txuas cov cuab yeej thiab electrified railway fais fab mov circuits. Hauv kev tawm tswv yim txog kev lag luam tiag tiag, feem ntau cov lus txiav txim rov qab los ntawm thaj chaw ntug dej hiav txwv thiab thaj chaw muaj kuab paug hnyav heev, qhov twg cov tsoos ceramic insulators tsis ua haujlwm ruaj khov txhua xyoo.

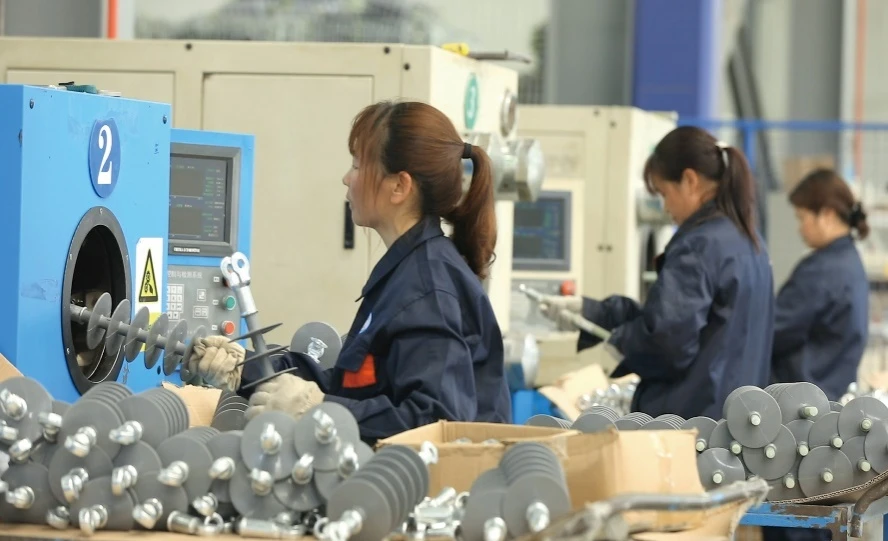

Kev Tswj Xyuas Zoo
Kev soj ntsuam nruj nruj ua haujlwm los ntawm tag nrho cov txheej txheem tsim khoom. Ua ntej xa khoom, txhua yam khoom yuav raug tshuaj xyuas kom meej. Peb pawg neeg cob qhia kuaj cov khoom qhov ntev, cov cuab yeej muaj peev xwm thiab lub zog ntub dej zaus tiv taus qhov hluav taws xob tag nrho raws li IEC cov qauv thoob ntiaj teb. Tsis tu ncua batch sampling thiab soj ntsuam kuaj pab peb raws sij hawm nrhiav tau tej yam tsis xws luag, xyuas kom meej txhua yam khoom xa tuaj zoo ib yam thiab txhim khu kev qha zoo.
