EC Insulator Jiangxi Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm high voltage porcelain surge ntes nyob rau hauv Suav teb. Nrog kev paub dhau los, peb tau cog lus los muab cov kev pabcuam zoo tshaj plaws. Thov koj xav tias dawb rau cov lag luam wholesale premium high voltage porcelain surge arrester ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas.
Khoom Taw Qhia
Porcelain Insulator Arrester feem ntau yog siv nyob rau sab nraum zoov siab -voltage networks los tiv thaiv transformers, substations thiab overhead fais fab khoom siv los ntawm xob laim impulse thiab switching overvoltage.
Hauv ntau txoj haujlwm fais fab, xaiv tus neeg ntes yuav tsum xav txog ntau dua li qhov sib piv ntawm qhov system voltage. Kev teeb tsa qhov chaw, theem kev ua qias tuaj, kev sib koom ua ke ntawm rwb thaiv tsev thiab cov khoom siv tiv thaiv tuaj yeem cuam tshuam rau qhov kawg tsim. Porcelain vaj tsev tseem raug xaiv rau cov ntawv thov uas lub zog siv tshuab thiab ntev - lub sij hawm rwb thaiv tsev sab nraum zoov yog qhov tseem ceeb.
CA series npog cov ntsuas hluav taws xob ntawm 3kV txog 54kV thiab yog tsim raws li IEC 60099-4 ntsig txog cov cai rau cov hlau oxide surge arresters.
Product Description

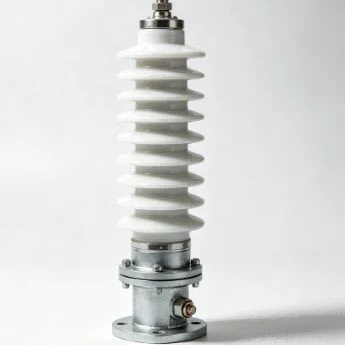

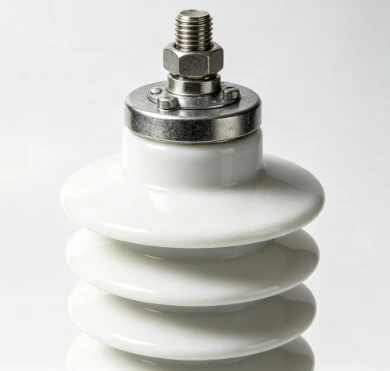

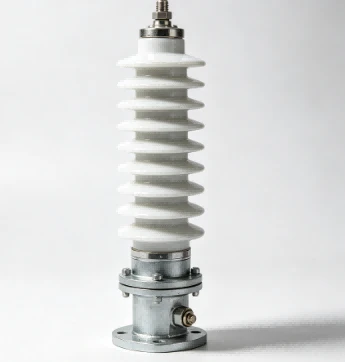

High Voltage Porcelain Insulator Arresterua ke cov tshuab hluav taws xob rwb thaiv tsev nrog ZnO (zinc oxide) tsis yog- cov kab hluav taws xob tiv thaiv los muab kev tiv thaiv hluav taws xob tiv thaiv hluav taws xob thiab hloov hluav taws xob hauv siab -voltage systems.
Thaum lub sij hawm tsis zoo voltage tej yam kev mob, ZnO cov ntsiab lus sai hloov lawv cov yam ntxwv hluav taws xob thiab tso tawm surge zog, txo qhov voltage kev nyuaj siab siv rau transformers, switchgear thiab lwm yam khoom siv txuas. Cov vaj tse plooj (porcelain) muab cov rwb thaiv tsev sab nraud thiab kev txhawb nqa txhua yam, uas ua rau hom kev ntes no haum rau kev teeb tsa sab nraum zoov uas raug huab cua hloov pauv.
Hauv kev siv tiag tiag, qhov chaw sib txawv yuav xav tau cov khoom sib txawv. Ib qho chaw nyob ze ntawm ntug dej hiav txwv, piv txwv li, tej zaum yuav xav tau kev nkag mus ntev dua vim tias muaj ntsev paug, thaum cov chaw lag luam uas muaj kuab paug hnyav yuav xav tau kev xav txog kev rwb thaiv tsev ntxiv. Xaiv txoj caiHigh Voltage Porcelain Insulator ArresterNws suav nrog kev txheeb xyuas qhov ntsuas hluav taws xob, MCOV, qhov ntsuas qhov deb thiab kev teeb tsa ua ke. CA series npog 3kV rau 54kV systems nrog 5kA nominal paug tam sim no, MCOV los ntawm 2.55kVrms mus rau 45.90kVrms thiab creepage nrug xaiv los ntawm 323mm txog 2040mm.
Manufacturing thiab Project Customization
Kev ua tau zoo ib yam yog nyob ntawm kev ceev faj ntawm cov khoom siv, kev ua haujlwm thiab kev tshuaj xyuas zaum kawg.
Ua ntej ntau lawm, porcelain vaj tse, ZnO resistor ntsiab, hlau fittings thiab sealing Cheebtsam raug soj ntsuam raws li cov kev cai. Porcelain qhov chaw yog tsim thiab sintered nyob rau hauv kev tswj tej yam kev mob kom ua tau raws li qhov yuav tsum tau txhua yam muaj zog thiab rwb thaiv tsev yam ntxwv. ZnO cov ntsiab lus raug kuaj ua ntej sib dhos los xyuas lawv cov kev ua haujlwm hluav taws xob.
Tom qab ua tiav kev sib dhos, cov neeg ntes tiav raug tshuaj xyuas los ntawm kev ntsuas hluav taws xob niaj hnub, suav nrog kev ntsuas hluav taws xob seem, kev ntsuas hluav taws xob thiab lub zog zaus tiv thaiv kev sim. Cov txheej txheem no pab kom paub meej cov khoom sib xws ua ntej xa khoom xa tuaj.

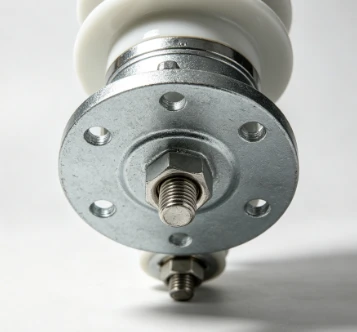

Rau tej yaam num nrog tshwj xeeb installation tej yam kev mob, kev kho yuav ua tau rau lub tsev qhov ntev, mounting qauv, davhlau ya nyob twg kev npaj thiab creepage nrug. Cov ntaub ntawv xws li qhov system voltage, installation ib puag ncig thiab cov pa phem tso cai rau cov khoom teeb tsa kom zoo dua rau daim ntawv thov tiag tiag.
Cov ntaub ntawv technical
|
Yam khoom |
Specification |
|
Daim ntawv pov thawj |
IEC 60099-4: Tus Qauv Zauv |
|
Rated Voltage |
3kV - 54kV |
|
MCOV |
2.55kVrms - 45.90kVrms |
|
Nominal Discharge Current |
5 kA |
|
Khoom siv tsev |
Porcelain |
|
Creepage nrug |
323mm - 2040 hli |
|
Daim ntawv thov |
Sab nraum zoov substations, transformers, overhead kab thiab industrial fais fab system |
FAQ
Dab tsi ua rau cov porcelain vaj tse tsim nyog rau kev siv sab nraum zoov ntes?
Porcelain vaj tsev muab lub zog txhua yam thiab cov yam ntxwv zoo rwb thaiv tsev, uas yog ib qho tseem ceeb rau cov khoom siv sab nraum zoov rau ntau xyoo. Nyob rau hauv substations thiab transformer tiv thaiv daim ntaub ntawv, tus neeg ntes yuav ntsib kev raug tshav ntuj, ya raws, kub hloov thiab muaj kuab paug, yog li cov txheej txheem durability yog ib qho tseem ceeb xaiv.
Cov ntaub ntawv dab tsi yuav tsum tau lees paub ua ntej xaj?
Cov ntaub ntawv tseem ceeb suav nrog qhov system voltage, qhov chaw teeb tsa, hom khoom tiv thaiv thiab ib puag ncig. Cov ntsiab lus no pab txiav txim siab qhov tsim nyog tus neeg raug ntes thiab zam kev xaiv qhov kev teeb tsa uas tsis phim qhov chaw ua haujlwm tiag tiag.
