EC Insulator Jiangxi Co., Ltd. Nrog kev paub dhau los, peb tau cog lus los muab cov kev pabcuam zoo tshaj plaws. Thov koj xav tias dawb rau cov lag luam wholesale premium auto circuit recloser ua nyob rau hauv Suav teb nov los ntawm peb lub hoobkas.

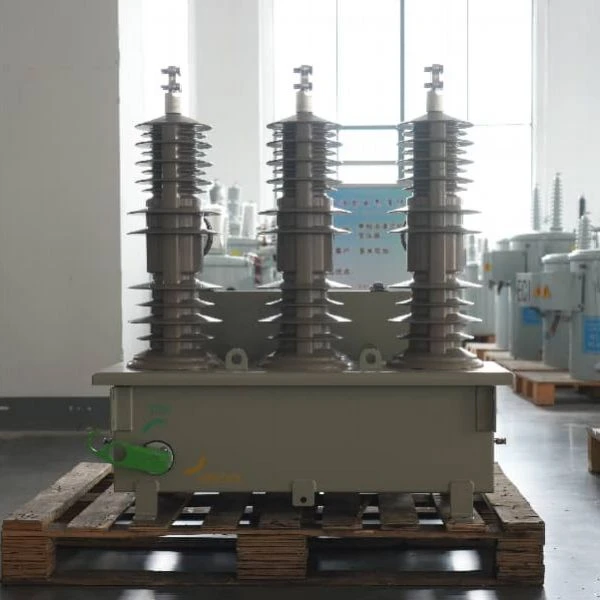

Product Overview
Qhov no pib Circuit Court recloser lub hom phiaj nyiaj siv ua haujlwm tshaj tawm mus txog 38 kV los txhawb daim phiaj kev kho tus kheej. Txhua qhov kev txiav txim siab tiv thaiv tau ua haujlwm hauv zos hauv chav tsev, yog li cov chaw tuaj yeem ua haujlwm ib txwm ua yam tsis muaj cov lus txib sab nraud. Thaum faults tshwm rau ntawm lub network, lub tshuab nqus tsev cuam tshuam nrog kev ua kom sib nqus mus tas li muab cov lus teb ceev ceev. Cov neeg ua haujlwm hauv teb tsis tas yuav nyob ntawm qhov chaw, thiab tsis yog qhov kev sib txuas ntawm SCADA uas yuav tsum tau ua los ua cov haujlwm tseem ceeb tiv thaiv. Qhov ntawd ua rau cov cuab yeej no ua kom haum rau cov kab hluav taws xob nyob hauv thaj chaw uas muaj kev sib txuas lus nyuaj los ntawm.
Ntsiab nta
Tsis zoo li tus qauv switchgear, tus recloser no tuaj yeem ua haujlwm ywj siab ntawm qhov chaw. Hermetically kaw lub tshuab nqus tsev interrupters tua hluav taws xob arcs thaum lub sij hawm daim phiaj faults. Nws lub zog hlau nplaum ruaj khov tsis hu rau kev pabcuam tsis tu ncua, thiab nws tswj kev hloov pauv kev ua haujlwm ruaj khov txawm tias tom qab lub sijhawm ua haujlwm ntev. Cov khoom siv microprocessor hauv zos nyeem cov kab sib chaws tiag tiag thiab kho qhov chaw tiv thaiv kom phim qhov hloov pauv network. Internal muaj peev xwm transformers sau lub zog khiav hauj lwm ncaj qha los ntawm nyob conductors. Tsis muaj cais pab fais fab mov yuav tsum tau teem caij rau kev teeb tsa.
Technical Specifications
|
Kev ntsuas |
Khoom Dielectric |
||
|
15.5kV 15 |
27kv ua |
38kv ua |
|
|
Siv tau Standard |
IEC 62271-111 / ANSI C37.60 |
||
|
Rated Voltage (kV) |
15.5 |
27 |
38 |
|
Rated tam sim no (A) |
800 |
800 |
800 |
|
Rated Zaus (Hz) |
50/60 |
||
|
Rated luv -lub sij hawm tiv taus tam sim no (kA) |
16/3s |
||
|
Rated Ua Tam Sim No (kAp) |
40/41.6 |
||
|
Rated Fais Fab Zaus Nrog Voltage (kV) |
50 |
60 |
70 |
|
Impulse tiv thaiv voltage (kV) |
110 |
150 |
170 |
|
Mechanical Endurance (lub sijhawm) |
10,000 |
||
|
Kev cuam tshuam nruab nrab |
Lub tshuab nqus tsev |
||
|
Kev Ua Haujlwm Mechanism |
Phau ntawv los yog Bi-stable Magnetic Actuator |
||
|
Bushing Khoom |
HCEP |
||
Daim ntawv thov
Ntau qhov chaw teb uas xav tau cov lus teb tsis raug hauv zos sai tau txais qhov kev rov qab los no. Cov kev teeb tsa ib txwm suav nrog cov xov tooj hluav taws xob nyob deb nroog, cov chaw taws teeb faib hluav taws xob automation nodes thiab kab segmentation cov ntsiab lus rau cov khoom siv hluav taws xob loj. Thaum muaj teeb meem tshwm sim, faulty kab ntu tau raug cais tawm thaum lub hwj chim mov tseem muaj rau lwm qhov tsis cuam tshuam. Nws ua haujlwm zoo nyob rau hauv cov cheeb tsam uas muaj kev sib txuas lus tsawg, nrog rau cov chaw uas muaj qhov tseem ceeb tshaj plaws ntawm kev ceev ceev ceev.
Kev tsim kho / tsim

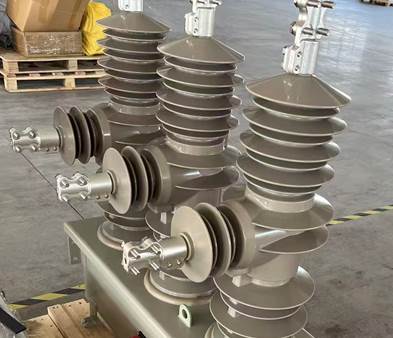

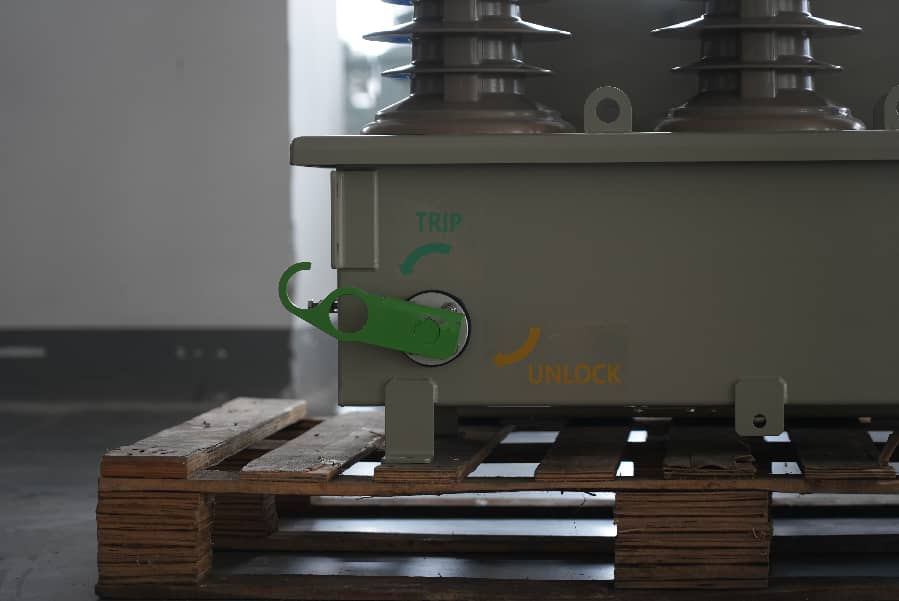

Chav tsev yog tsim rau sab nraum zoov ncej sab saum toj mounting. Nqus interrupters, sib nqus tsav sib nqus thiab tag nrho cov cuab yeej tswj hwm zaum hauv ib lub kaw lus compact. Tsis muaj qhov yuav tsum tau muaj rau kev tswj hwm sab nraud ntawm cov txee. Installation siv tus qauv ncej mounting kho vajtse. Cov chaw ua haujlwm tuaj yeem hla kev nqis peev ntxiv rau cov tuam tsev tswj hwm thiab lwm qhov chaw txhawb nqa.
Txuj & Kev Xeem

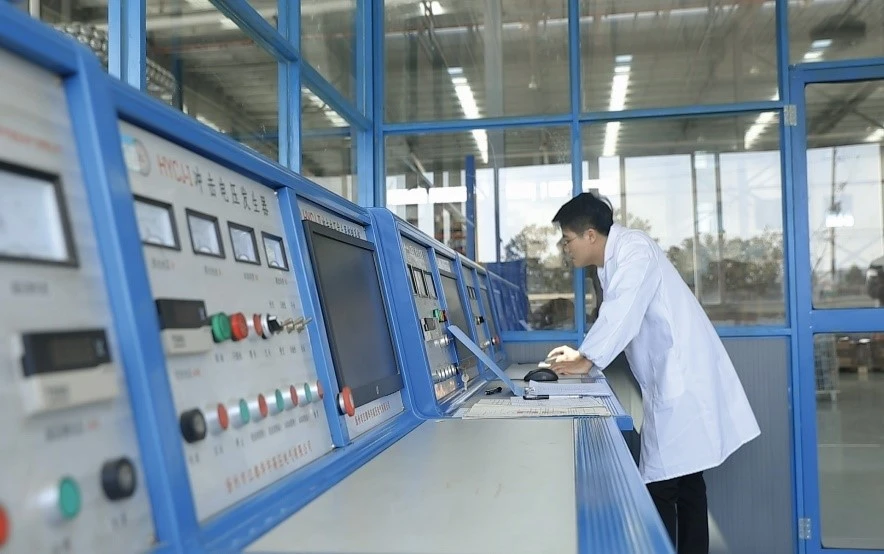

Peb khiav ntau qhov kev kuaj xyuas kom tseeb los xyuas qhov tseeb -kev ua haujlwm hauv ntiaj teb nyob rau hauv cov xwm txheej ua haujlwm sib txawv. Hom kev ntsuam xyuas ntsuas dielectric zog, luv luv Circuit Court breaking peev xwm thiab kev ua tau zoo tom qab lub sij hawm ntev ib puag ncig laus. Cov kev ntsuam xyuas ntxiv tsom rau kev tiv thaiv hauv cheeb tsam kev ua tau zoo, suav nrog kev tshawb nrhiav qhov tseeb, kev tiv thaiv kab ke ua tiav thiab ruaj khov tsis siv neeg rov kaw yam tsis muaj kev tswj hwm sab nraud. Txhua chav ua tau raws li IEC 62271 111 thiab ANSI C37.60 cov kev cai, nrog rau cov kev xeem sib cais los txheeb xyuas qhov kev ua tau zoo ntawm cov khoom siv hluav taws xob.
Ntim & Xa
Kev poob siab thiab kev tso tawm zoo li qub tuaj yeem ua rau puas tsuaj rau cov khoom siv hluav taws xob thiab cov khoom siv hluav taws xob puas tsuaj thaum caij tsheb thauj mus los, yog li kev tiv thaiv kom raug siv rau kev xa khoom. Txhua chav yuav dhau los ntawm tag nrho lub Hoobkas calibration ua ntej xa zaub mov kom ruaj khov rau sab hauv. Tom qab kev teeb tsa ncej saum toj kawg nkaus, tsuas yog qhov chaw ua haujlwm tsawg heev yog xav tau. Cov kws tshaj lij hauv teb tsuas yog tshawb xyuas qhov zoo ntawm kev txhim kho thiab ua tiav qhov kev ntsuas qhov tseeb ua ntej muab lub tsev rau kev pabcuam. Nyob rau hauv ib qho kev ua haujlwm ntawm kab sib chaws, kev kho dua tshiab tsuas yog xav tau txhua txhua 20 txog 30 xyoo. Kev saib xyuas niaj hnub yog txwv rau kev kuaj pom yooj yim.
